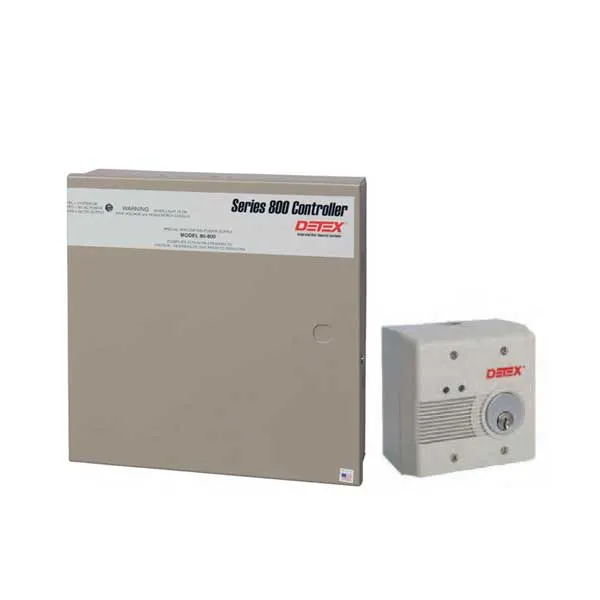

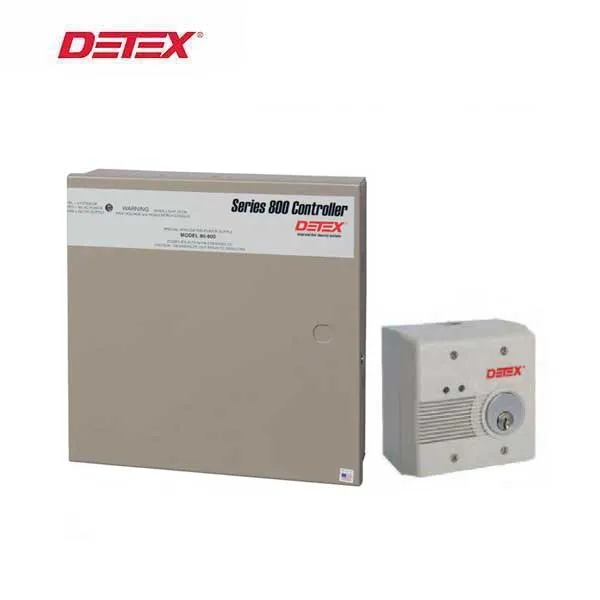

The is a universal logic and power supply controller that convert 120VAC into regulated and filtered 24VDC, providing a secure, consistent, power feed to Detex fully integrated electric latch retraction with delayed egress exit devices. Included with the controller is the Remote Interface Unit (RIU) containing the alarm and
keyswitch for the delayed egress.

• Power supply and controller all in one box

• All connections centralized
• Single AC line voltage required to activate

• Allows you to specify and supply the economical 85-800 for 2-door latch retraction for delayed egress applications
• The Series 85-800 products have been engineered to provide superior operation through design integration with electric latch retraction, delayed egress options

• 2 A continuous, controls 2 Detex electric latch retraction, delayed egress (EExER) devices for a pair of doors
• Fire alarm input for life safety compliance
• Filtered and regulated 24VDC power protects the circuitry from stray power surges and spikes
• Fuse protection
• Connections are labeled to identify circuits
• Can be bypassed or rearmed with key or Access Control
• DSM - Door Signal Module signals Automatic Operators
• Cable harnesses engineered to take guesswork out of making correct point to point connections
• Cable harness lengths allow enclosures to be located up to 15' from the device
• Status LEDs toggle on or off for easy troubleshooting
• Output relay for local and remote alarm

• ER options powers 1 EExER and 1 ER only Exit device
