Description

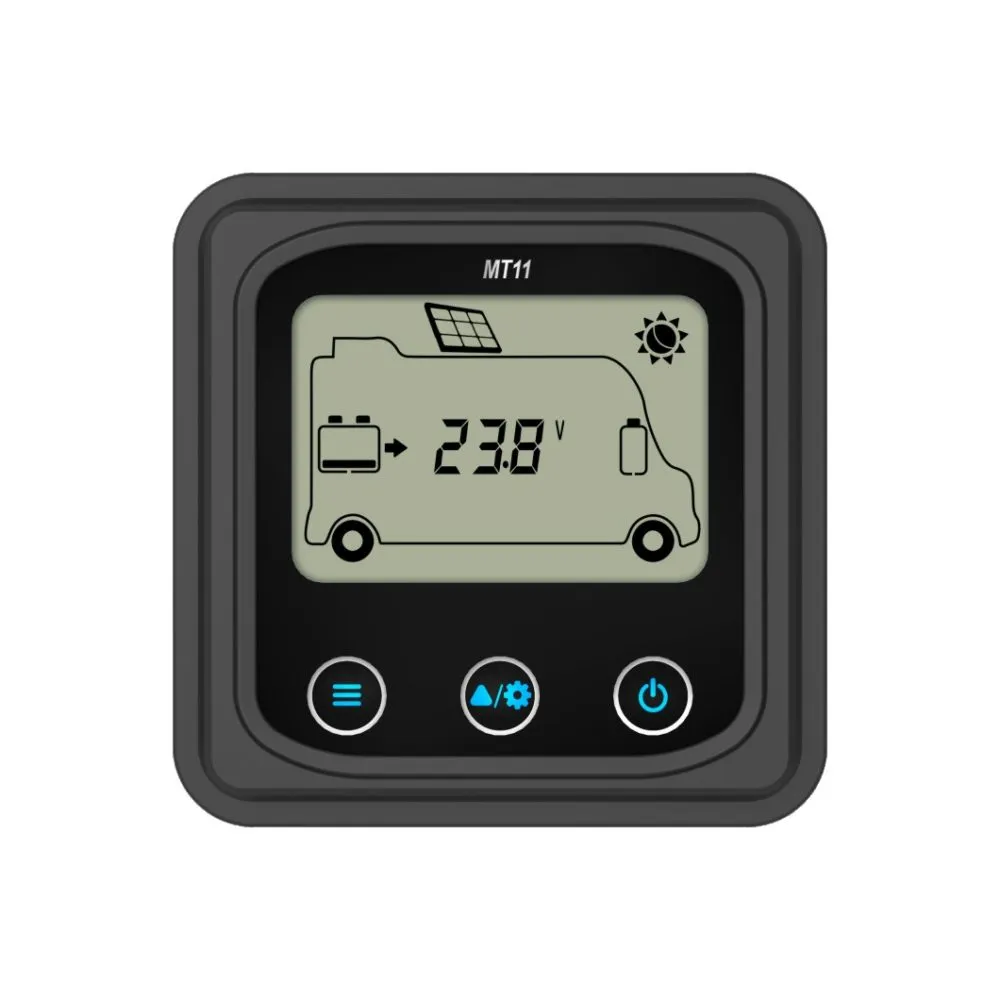

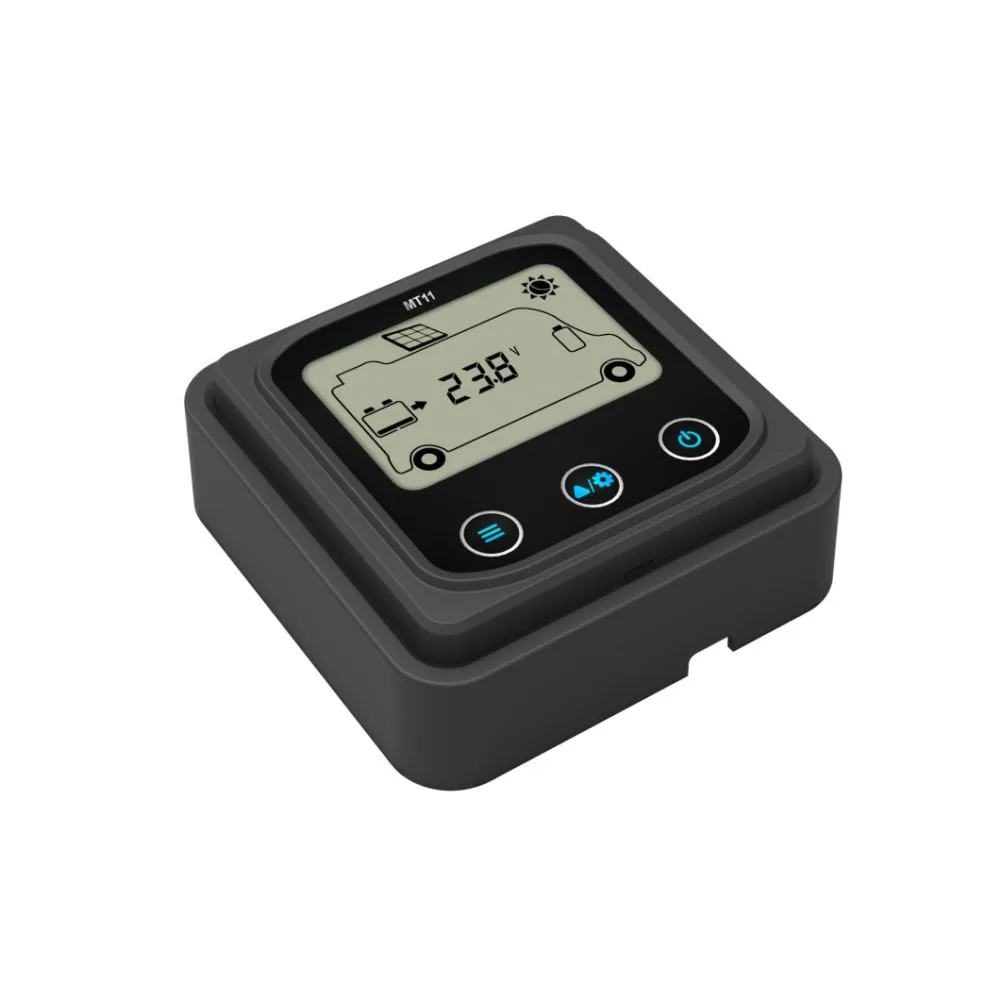

Epever’s MT11 remote meter is an accessory that is compatible with the DuoRacer series Solar Charge Controller.  The running data and working status of the solar controller can be monitored via the MT11 remote meter. The MT11 can browse the controller’s parameters, set the battery type and temperature unit, and clean the generated energy. It is suitable for RV, Camper, Boat, and other small applications.

MT11 Remote Meter for DuoRacer Description

Epever's MT11 remote meter is an accessory that is compatible with the DuoRacer series controller.  The running data and working status of the controller can be monitored via the MT11 remote meter. The MT11 can browse the controller’s parameters, set the battery type and temperature unit and clean the generated energy. It is suitable for RV, Camper, Boat, and other small applications.

MT11 Remote Meter Features

• Automatically identify and display the type, model and relevant parameter data of controllers.
• Real-time display of the operational data and working status of the connected devices in digital, graphics and textural forms by a large-screen multifunction LCD
• Three-touch buttons are easy and quick to operate.
• No need for an external power supply.  The charge controller supplies the power for MT11
• It can browse the controller's parameters, set the battery type and temperature unit, and clean the generated energy
• Real-time display of failure information of the connected devices.
• Longer communication distance based on RS485.

Specifications

Key Specifications

• Apply to model: DuoRacer series
• Self-consumption(Power on): 13mA/5Vdc
• Self-consumption(Power off): 4mA
• Communication way: RS485
• Communication port: 3.81-4P
• RS485 cable:
  • CC-RS485-RS485-3.81-4P-150(1.5m)
    CC-RS485-RS485-3.81-4P-500(5m)
    CC-RS485-RS485-3.81-4P-1000(10m)
• Dimension: 98.4×98.4mm
• Base cover dimension: 114×114mm
• Enclosure: IP20
• Environment temperature:-20℃～ 70℃
• Storage temperature range: -20℃～ 70℃
• Weight: 0.11kg

Manufacturers Specifications & Certificates

About Epever

Beijing Epsolar Technology Co., Ltd. was established in March 2007 with more than 30 million RMB registered capital. They are a new and high-tech enterprise that specialises in power products research, manufacturing, and marketing.

They provide products including solar charge controllers, off-grid inverters, LED drivers, special power units, etc., as well as design and supply relevant solar application systems. The company has passed the ISO9001: 2008, and its products have passed CGC-SOLAR, CE, ROSH, FCC, and ETL certificates, as well as other domestic and international authoritative certifications and a number of patents. The products have been extensively applied and highly appraised in a number of major projects at home and abroad. And sell in more than 120 foreign countries and regions.

AA Solar can access EPEVER full range see their .
