Description

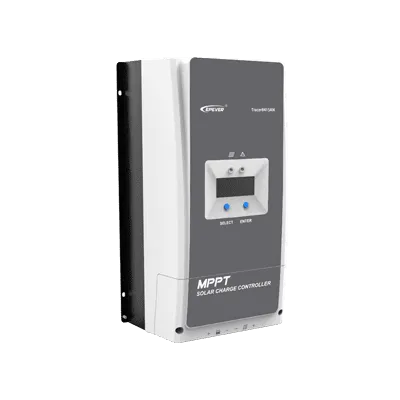

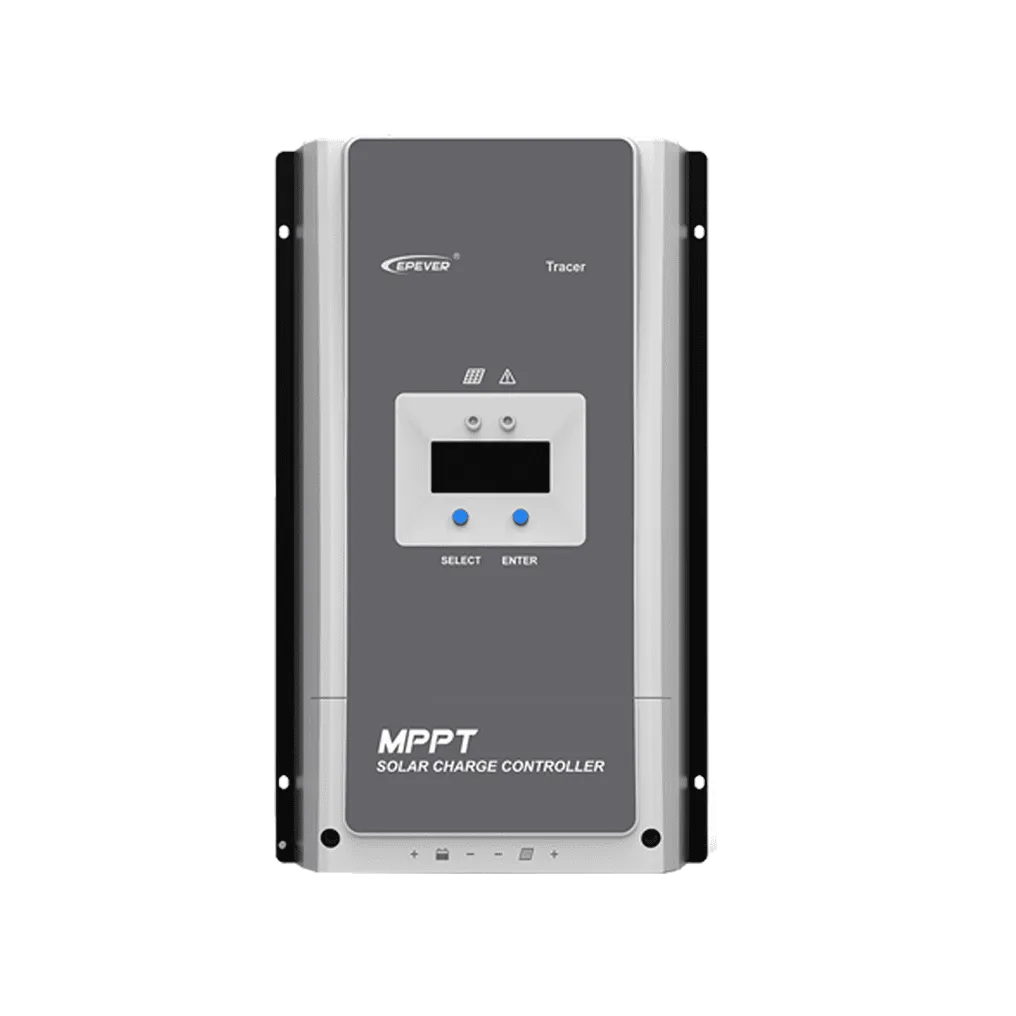

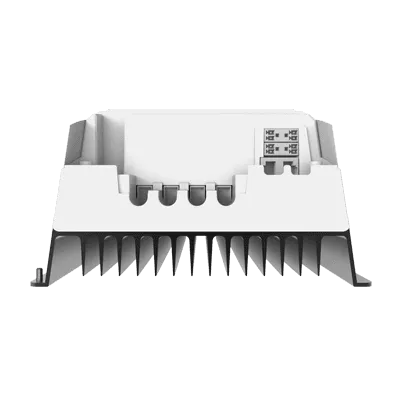

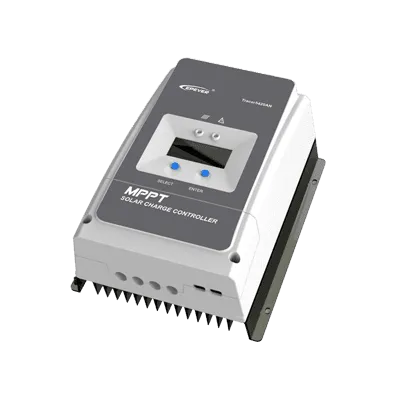

Tracer-AN Series MPPT Solar Charge Controller (50A-100A)

Epever's Tracer-AN Series MPPT Solar Charge Controller is for large currents up to 100A.  That is based on a multiphase synchronous rectification technology (MSRT) and an advanced MPPT control algorithm by Epsolar.  Featuring a dual-core processor architecture and common negative design features.  These include speed and reliability, and high industry standards. This tracer can be used for various applications such as RV, household systems and field monitoring.

Models: Tracer6420AN, Tracer8420AN, Tracer10420AN

Features

Features Tracer AN Series 50A-100A

• CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3),
• Advanced MPPT technology by Epsolar.
• Ultra-fast tracking speed with tracking efficiency of no less than 99.5%,
• Maximum DC/DC transfer efficiency is as high as 98.6%. * full load efficiency no less than 98%(*Tracer 10415AN@48V system).
• The state-of-the-art MPPT control algorithm will minimise the MPP loss rate.
• Highly accurate measurement of multiple-peaks MPP.
• Wide range of MPP operating voltages.
• Auto control system to limit the charging power and overcharging.
• Supports four charging options: Sealed, Gel, Flooded and user.
• Suitable for lead-acid and lithium batteries.
• Battery temperature compensation function.
• Real-time energy recording function.
• Automatic over-temperature power reduction function.
• Caters for up to 6 units in parallel to expand the system
• Load relay controls external load switch signal to deliver diversified load work modes
• The first and the second disconnection of load control contain two relay contact.
• Auto-control of utility and generator relay design
• Utility or generator auto-control relays make composing the hybrid power system easy.
• Remote temperature and the voltage sensor will collect accurate data on battery temperature and voltage.
• Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
• Can monitor or set parameters by using a phone app or PC software.

Specifications

Manufacturer Specfication & Certificates

AA Solar can access EPEVER's full range. .
