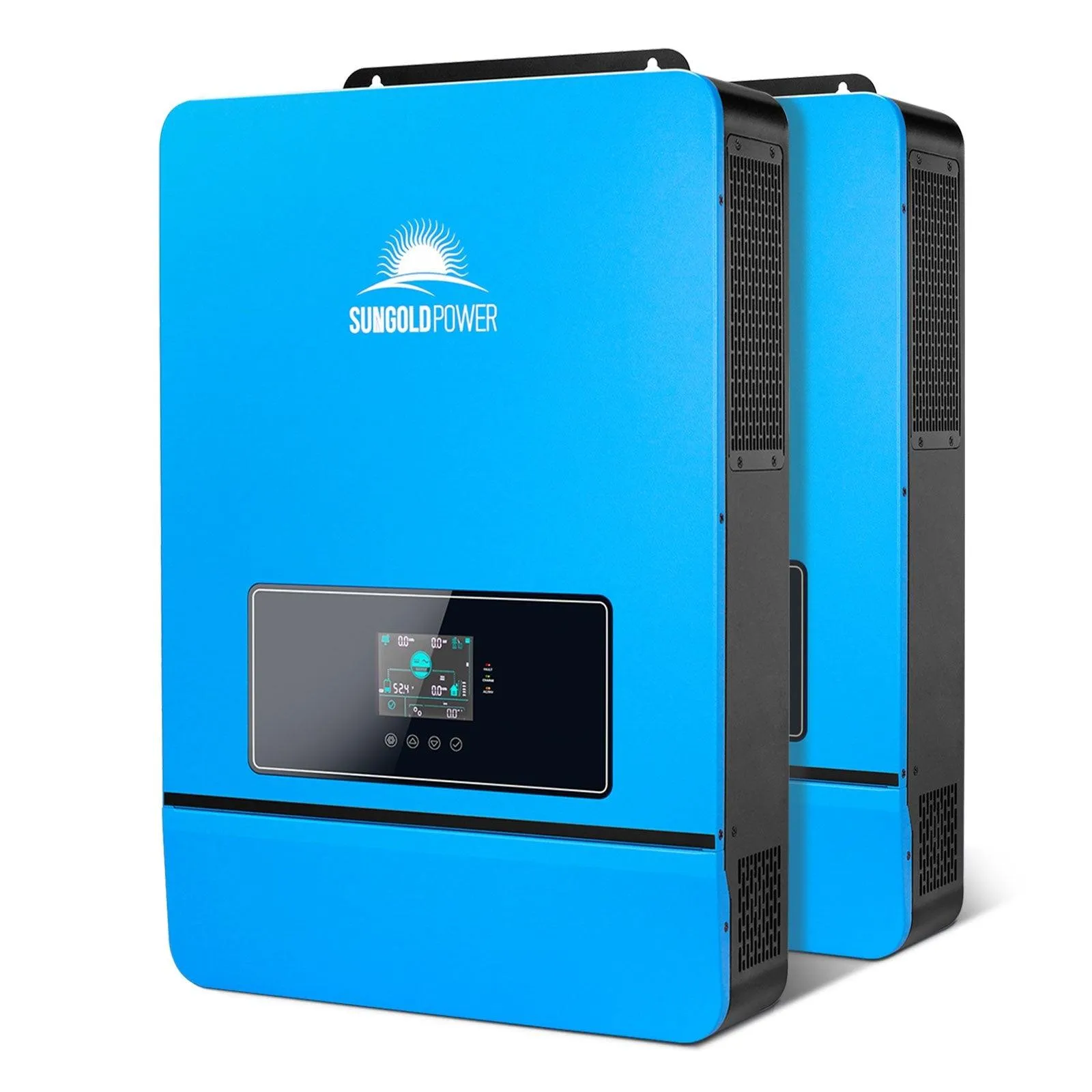

20KW 48V Split Phase Solar Inverter (2 Units Parallel)

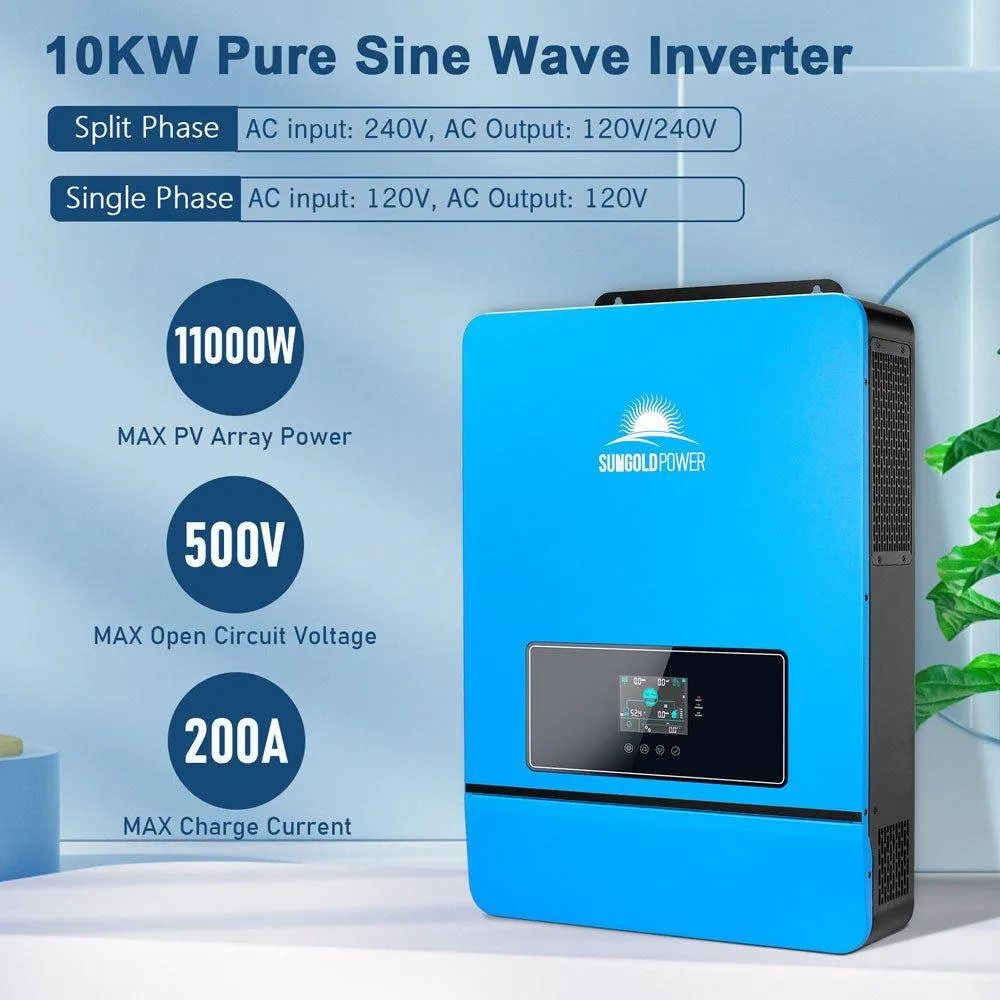

Unlock the power of renewable energy with the 20KW 48V Split Phase Solar Inverter. This all-in-one unit combines a state-of-the-art 10KW Pure Sine Wave Solar Inverter with an impressive maximum battery charging capacity of 200A and dual MPPT solar controllers, making it the ultimate solution for your solar energy needs. With its ability to deliver split phase (120V/240V) or single phase (120V) output, this inverter is engineered for versatility and efficiency.

Main Advantages:

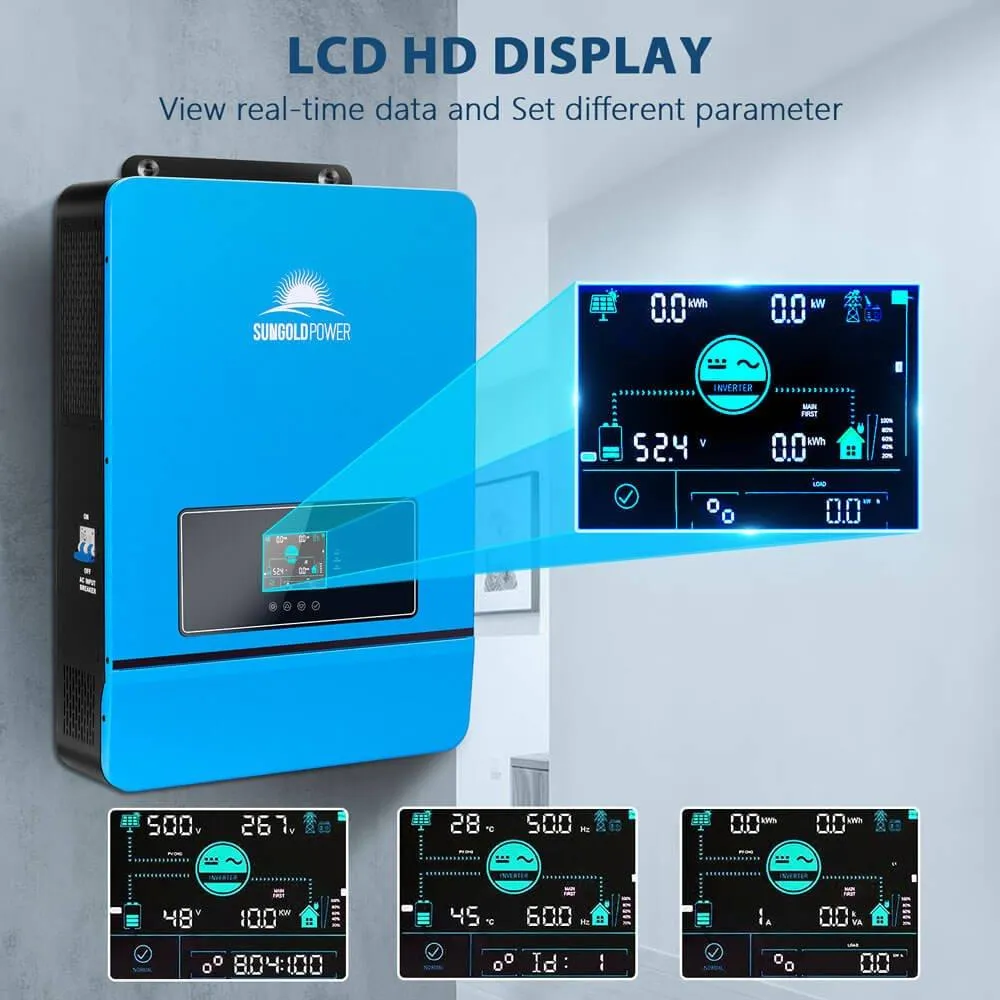

• Seamless Integration: The inverter boasts a built-in WiFi module allowing users to monitor the operating status and parameters directly from their mobile phone app, ensuring convenience at your fingertips.

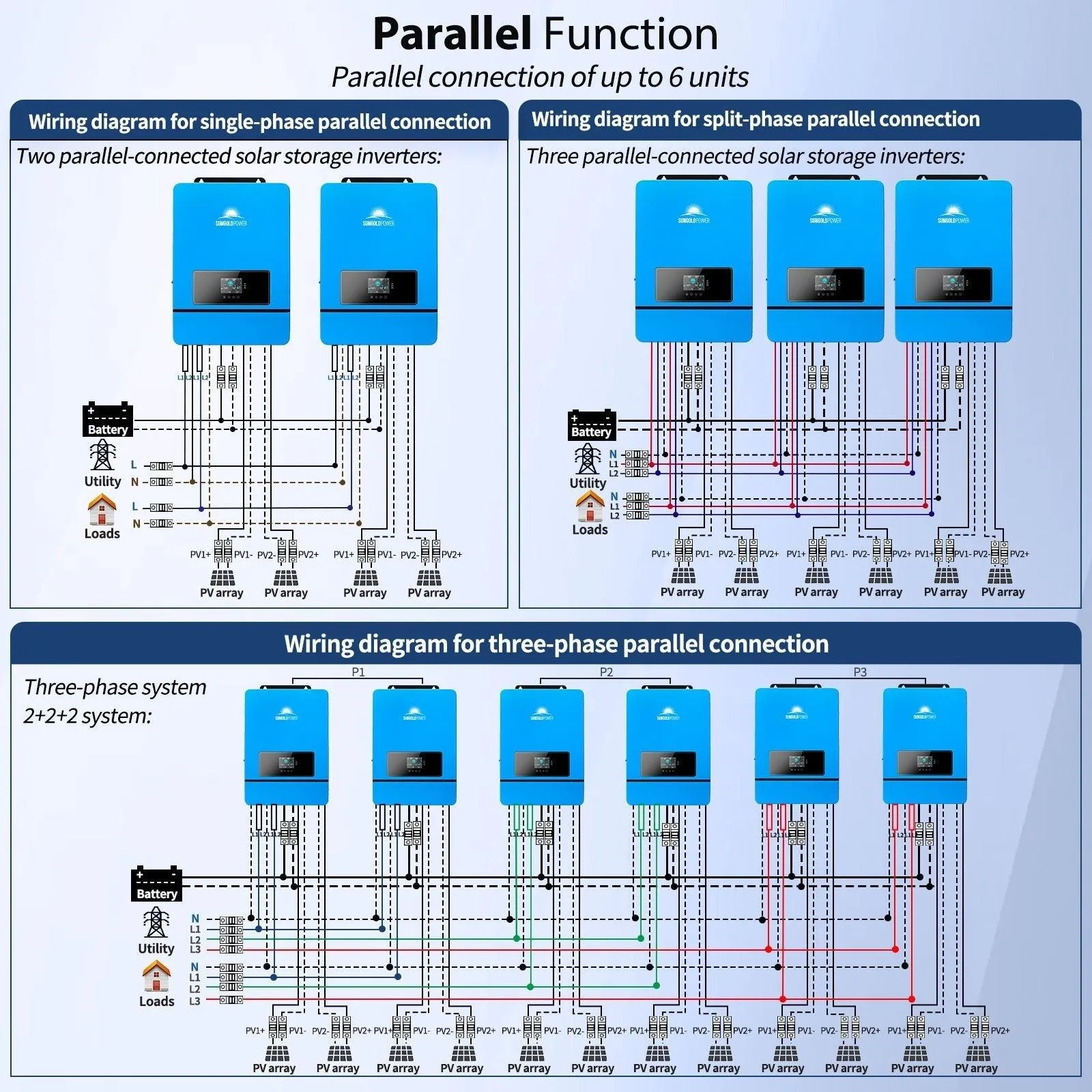

• Expandable Power Capabilities: With the ability to parallel up to 6 units, you can achieve an astonishing total output of 48KW. This allows for various configurations, including 120V single phase, 120V/240V split phase, or even 208V three-phase support, providing unmatched flexibility for your energy requirements.
• Robust Protection Features: Equipped with a rated output power of 10,000W and a maximum peak power of 20,000W, this inverter is built to handle loaded motor capacities up to 6HP. It also includes multiple protective features such as PV input over-voltage/current protection, AC input over-voltage protection, and battery over-voltage protection, ensuring safe and stable operation.

Why This Product is Essential:

In an era where energy sustainability is key, the 20KW 48V Split Phase Solar Inverter is not just an investment in a power source but a commitment to an eco-friendly future. Its advanced features and reliability make it a crucial component for anyone looking to harness solar energy effectively, reduce energy costs, and ensure a greener planet.

Specifications and Guides:

• Features:

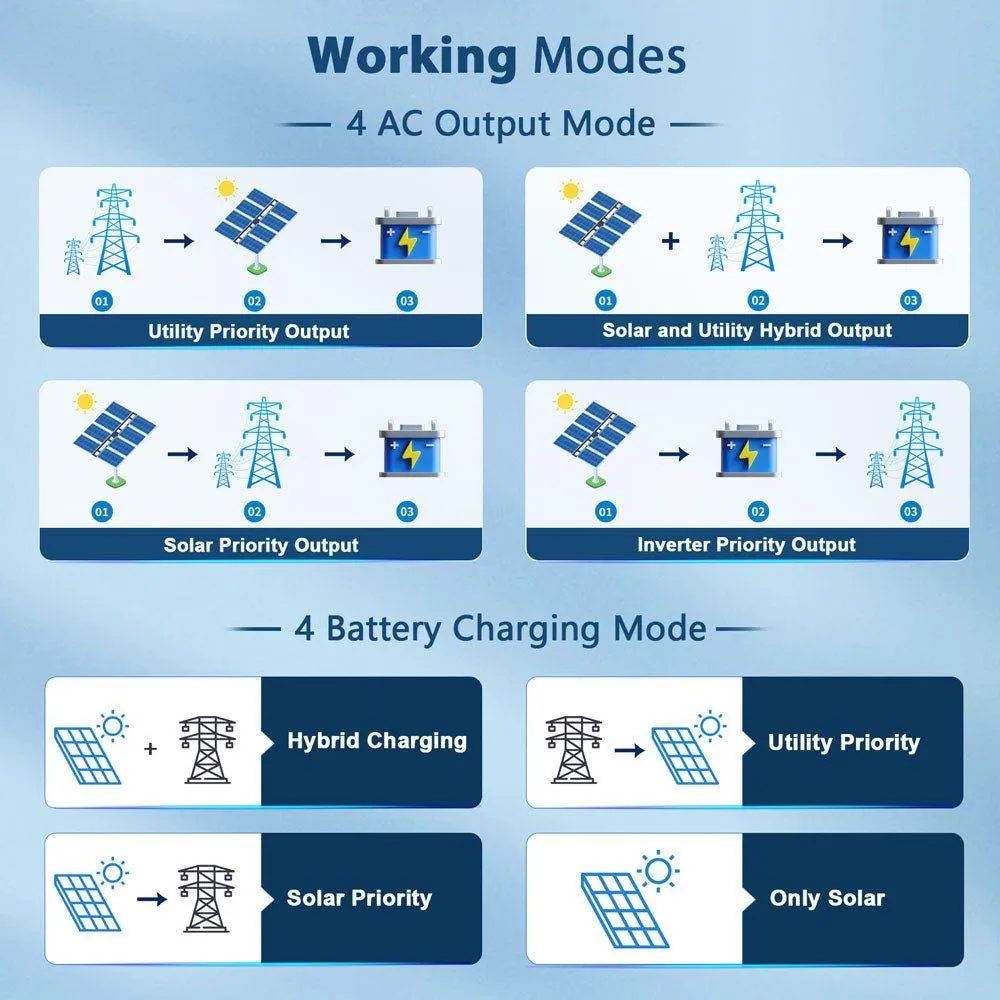

  • Hybrid Charging Modes: Utility Priority, Solar Priority, Hybrid, and Only Solar Charging.

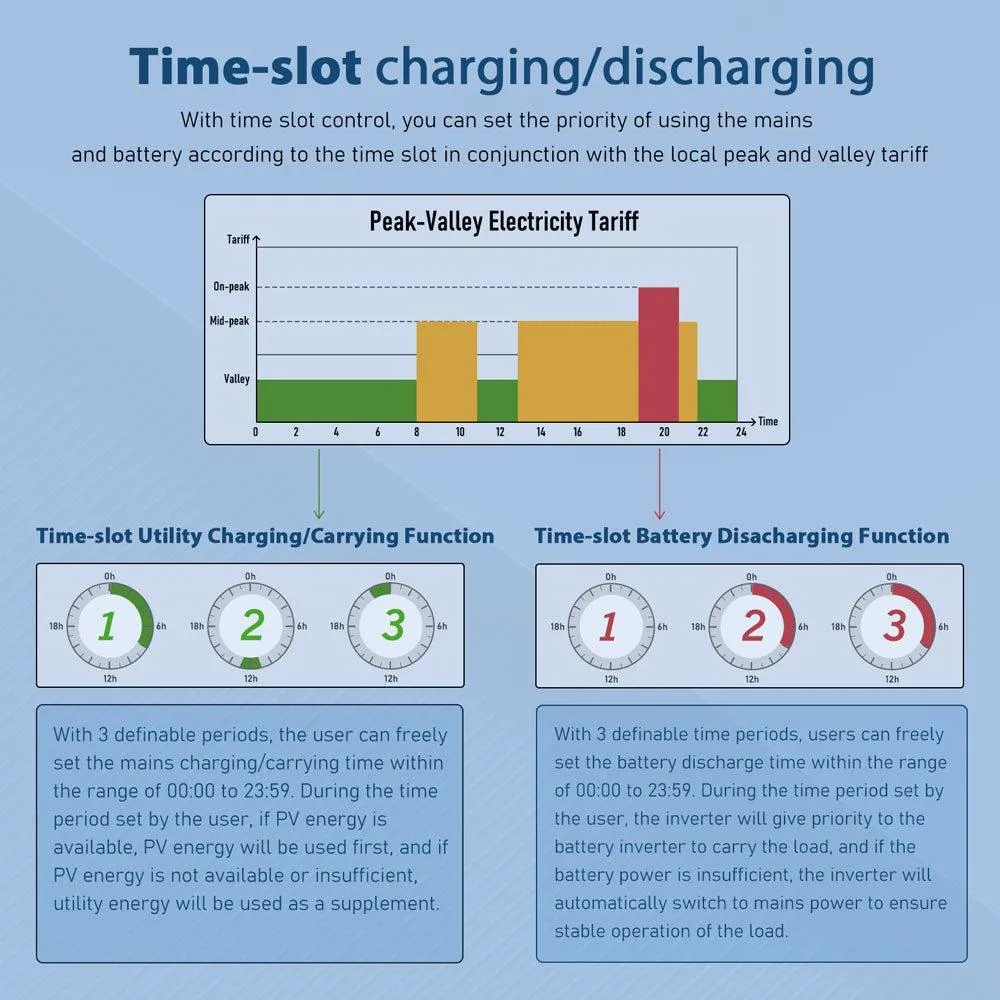

  • Time-slot charging/discharging function to maximize energy efficiency based on local tariff rates.

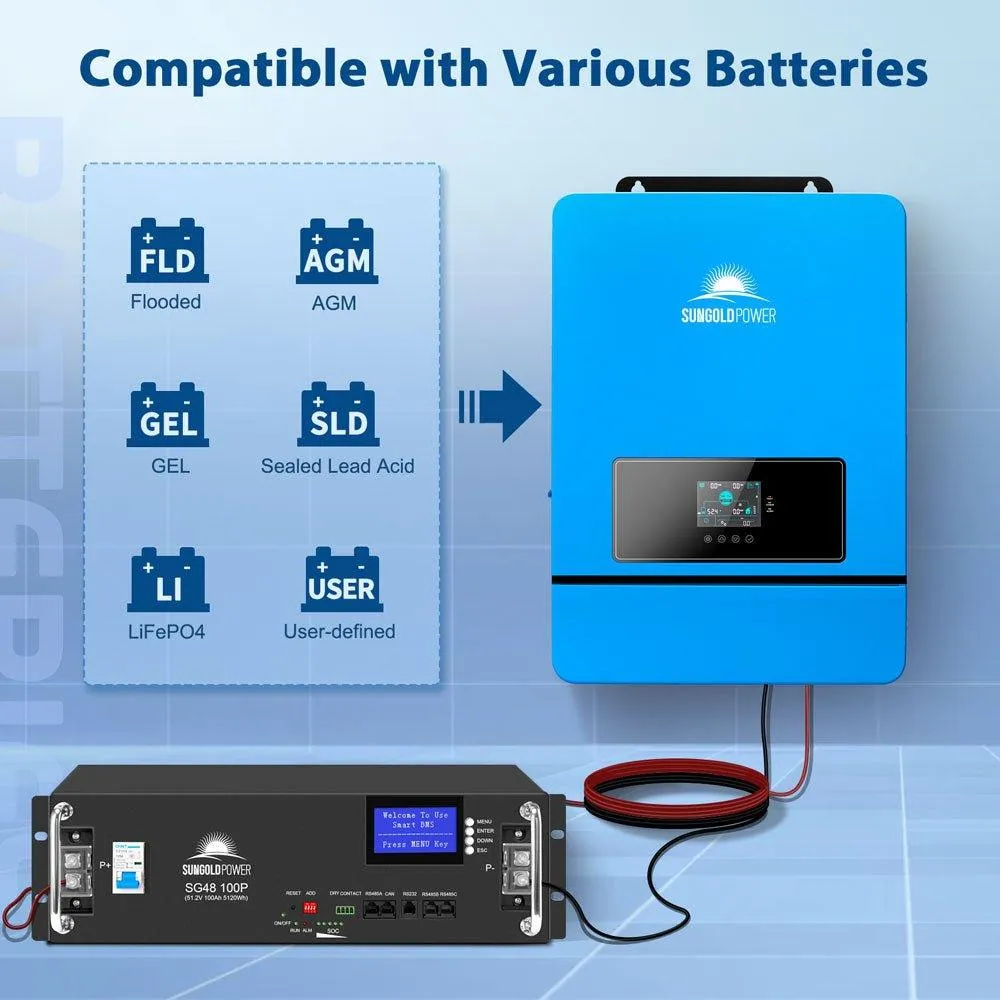

  • Compatible with various battery types including AGM, Gel, Flooded, and Lithium batteries.
• Manuals: Refer to the user manual available on the product's official website for detailed instructions.
• Guides: Visit our resource center for guides on installation, setup, and optimizing your solar system.
• Specifications:
  • Rated Output Power: 10,000W
  • Maximum Peak Power: 20,000W
  • Max Battery Voltage: 48V
  • Max Voltage of Open Circuit: 500VDC
  • Smart Protection Features: Over-voltage, Over-load, and more.

Invest in the 20KW 48V Split Phase Solar Inverter today and take the first step towards a more sustainable and economical energy solution!
