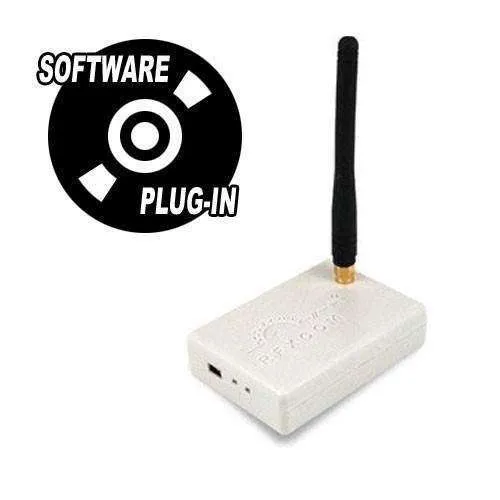

This software plugin is designed to allow HomeSeer systems to integrate with RFXCOM receivers and transmitters and WGL W800 receivers..

Main Features

• Compatible with RFXCOM Receivers and Transmitters
• Compatible with WGL W800 Receivers
• Works with a variety of wireless sensors
• This software is NOT free to HomeSeer PRO-Series users.

Important Information

Process received data from RF sensors and remotes.
The plugin processes the received RF data from a lot of wireless RF sensors and RF remotes.
This can be for example:

• X10 security sensors, lighting sensors and remotes
• Digimax
• RFXSensor for temperature, humidity, barometric pressure
• RFXPower for electricity usage metering
• RFXMeter with RFXPwr and RFXPulse for electricity/gas/water metering
• Visonic security sensors and keyfobs
• Oregon Scientific sensors and body weight monitors, (see the list at the end of this page)
• KlikOn-KlikOff/DomiaLite/NEXA/BBSB/ELRO AB600 (chime, remotes, wall switches)
• ATI Remote Wonder.

Control RF devices
The plugin can control electrical curtains and different types of RF lamp/appliance modules.

• Somfy RTS
• X10 lighting (not for US X10),
• Arm/Disarm X10 alarm panels (nor for US X10),
• KlikOn-KlikOff, DomiaLite, ELRO, Flamingo, NEXA, BBSB,
• HomeEasy, (with preset dim levels)
• Harrison electrical curtains.

Built-in software security panel
A status display gives the possibility to check error messages that have occurred.
The last displayed message can be used for an SMS message if an alarm occurs.
The arm/disarm status of this software alarm panel can be transmitted in RF to synchronize an X10 alarm panel (not for US X10)
Options for security sensors:

• button to temporarily disable the sensor (if the sensor is in error or battery empty)
• delayed sensor (to enter or leave the house if the panel is armed)
• "away only" sensor (mainly used to disable motion sensors if armed-home)
• active sensor (sensor is used in the security panel)

A configuration example with KlikOn-KlikOff, On/Off and dimmable HomeEasy modules, a Harrison electrical curtain, Oregon Scientific sensors and body weight scale, RFXSensor, RFXMeter for power usage and gas metering, build-in Alarm panel with status and display, alarm sensors, for the postbox a security sensor but not part of the alarm system and a manually disabled security sensor “Test”.

What's Included

• Software License Codes

Requirements

• HomeSeer HS3 or HS3PRO
• RFXCOM Receiver or Transceiver and/or WGL W800 receiver
• Compatible with Windows and Linux
