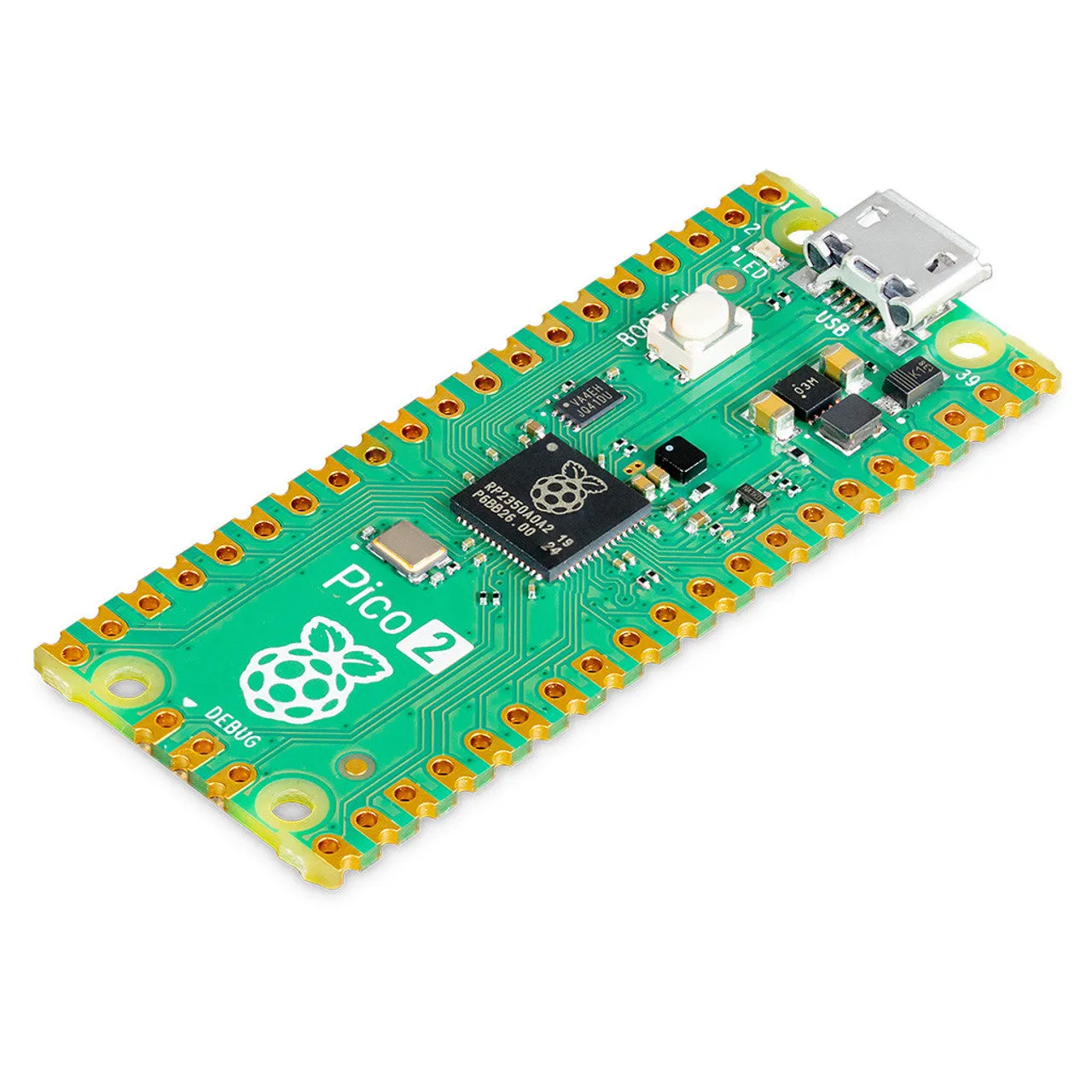

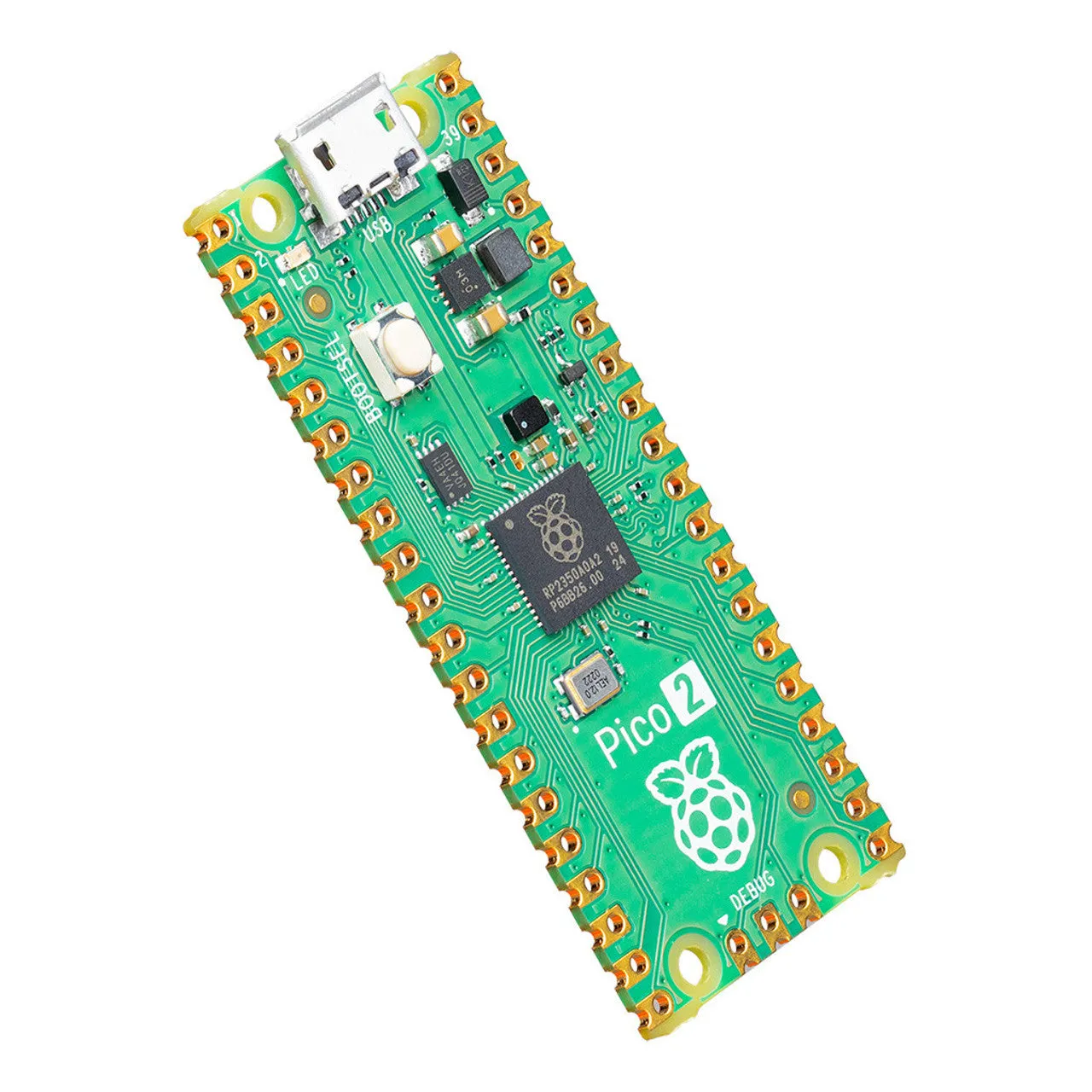

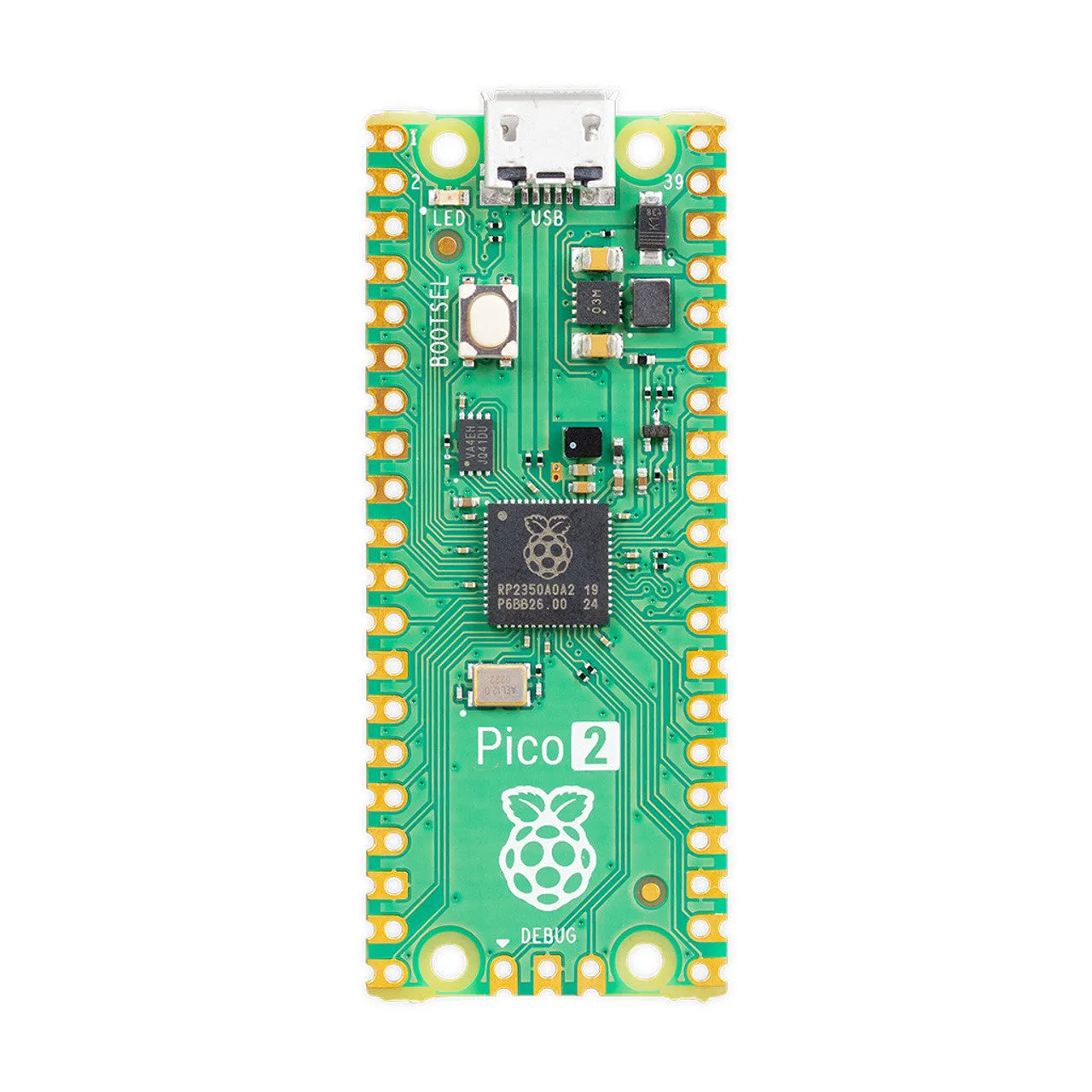

Raspberry Pi Pico 2 builds on the huge success of the original Raspberry Pi Pico product and its derivatives, which were launched in 2021 and 2022. It is powered by the brand-new RP235x microcontroller platform, designed by Raspberry Pi.
The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores and a pair of open-hardware Hazard3 RISC-V cores. Programmable in C / C and Python, and with detailed documentation, Raspberry Pi Pico 2 is the ideal microcontroller board for enthusiasts and professional developers alike.
In comparison with its predecessor, RP2040, RP235x offers:
- A 150MHz system clock (versus 133MHz)
- Dual Arm Cortex-M33 cores (versus dual Arm Cortex-M0 )
- Dual RISC-V Hazard3 cores
- 520KB RAM (versus 264KB)
- 8KB on-chip OTP storage
- A comprehensive security model, based on Arm TrustZone for Cortex-M
- Greatly improved power efficiency
Raspberry Pi Pico 2 pairs RP2350 with 4MB of on-board QSPI Flash memory (versus 2MB on Raspberry Pi Pico) for code and data storage.
The Pico 2 does not include GPIO or debugging pins, you'll need to purchase and attach the variety of your choice. We suggest . Once the header pins are in place, the Pico can be attached directly to a breadboard for wiring and prototyping.
Specifications
Form factor: 21 mm × 51 mm
CPU: Dual Arm Cortex-M33 or dual RISC-V Hazard3 processors @150MHz
Memory: 520 KB on-chip SRAM; 4 MB on-board QSPI flash
Interfacing: 26 multi-purpose GPIO pins, including 4 that can be used for ADC
Peripherals:
- 2 × UART
- 2 × SPI controllers
- 2 × I2C controllers
- 24 × PWM channels
- 1 × USB 1.1 controller and PHY, with host and device support
- 12 × PIO state machines
Input power: 1.8–5.5V DC
Operating temperature: -20°C to 85°C
Production lifetime: Raspberry Pi Pico 2 will remain in production until at least January 2040
Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
