General Information

Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: JX910A
Manufacturer Website Address: www.hpe.com
Brand Name: Aruba
Product Series: 7200
Product Model: 7280

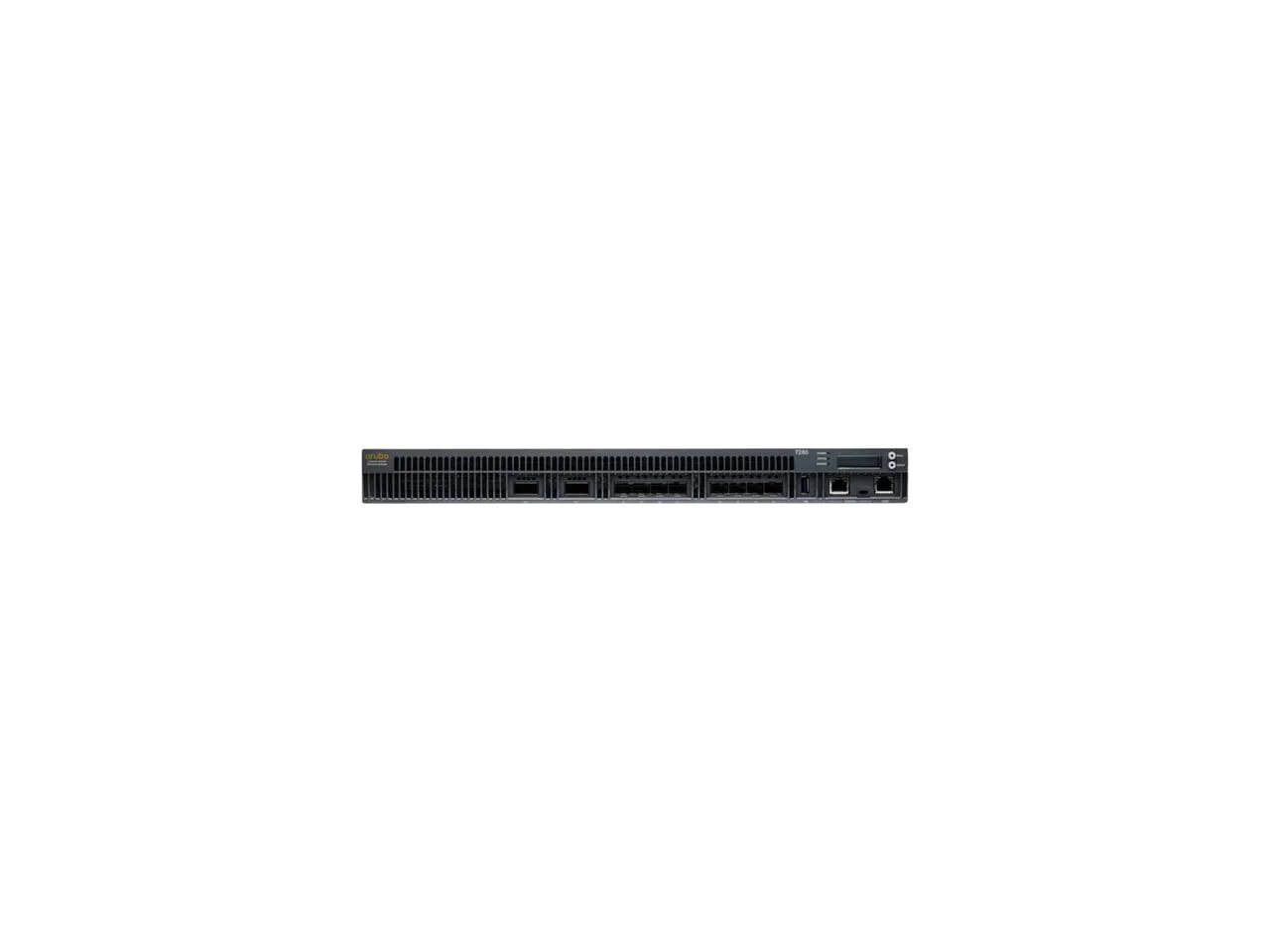

Product Name: 7280 Wireless LAN Controller
Marketing Information: The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.

With a new central processor that employs up to eight cores with four threads each, it's like having a total of 32 virtual CPUs. As a result, the 7200 series supports up to 32,768 mobile devices and performs stateful firewall policy enforcement at 100 Gbps - plenty of capacity and speed for BYOD and 802.11ac devices.

New levels of visibility are provided by Aruba's unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.

The 7200 series also manages authentication, encryption, VPN connections, IPv4 and IPv6 Layer 3 services, the Aruba Policy Enforcement Firewall, Aruba Adaptive Radio Management, and Aruba RFProtect spectrum analysis and wireless intrusion protection.

Clustering and centralized management enable the deployment of large networks with hundreds of Mobility Controllers with minimal staff. A master Mobility Controller can manage local Mobility Controllers, while Aruba AirWave network management provides enterprise-wide clarity and control through real-time monitoring, historical reporting and troubleshooting.

Key Features

Architected for High Availability

The 7200 series includes a number of features that make it ideal for deployment in customer locations that require maximum availability:

• Hot-swappable redundant power supplies: The 7210/7220/7240/7240XM/7280 supports dual, field-replaceable redundant power supplies to maintain uninterrupted network operations.
• Hot-swappable fan tray with multiple fans: The 7210/7220/7240/7240XM/7280 includes a field-replaceable fan tray with multiple fans, providing sufficient cooling and rapid time to repair.

Product Type: Wireless LAN Controller

Interfaces/Ports

Ethernet Technology: 10 Gigabit Ethernet
Ethernet Technology: 40 Gigabit Ethernet
PoE (RJ-45) Port: No
VGA: No
HDMI: No
USB: Yes
Powerline: No
Management Port: Yes

Physical Characteristics

Form Factor: Rack-mountable
Form Factor: Wall Mountable
Height: 1.7"
Width: 17.4"
Depth: 15.8"
Weight (Approximate): 17.42 lb

Warranty

Limited Warranty: 1 Year
