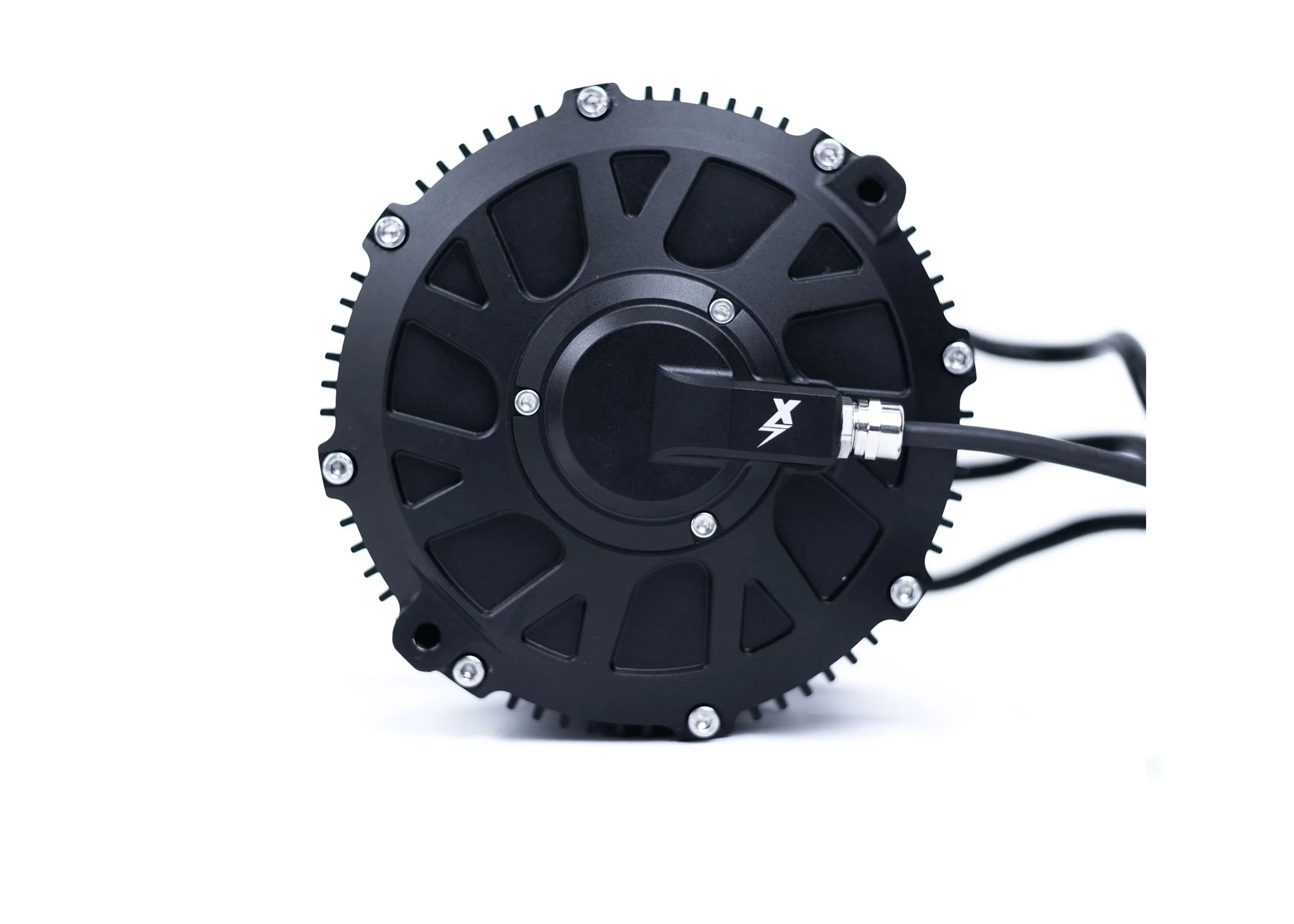

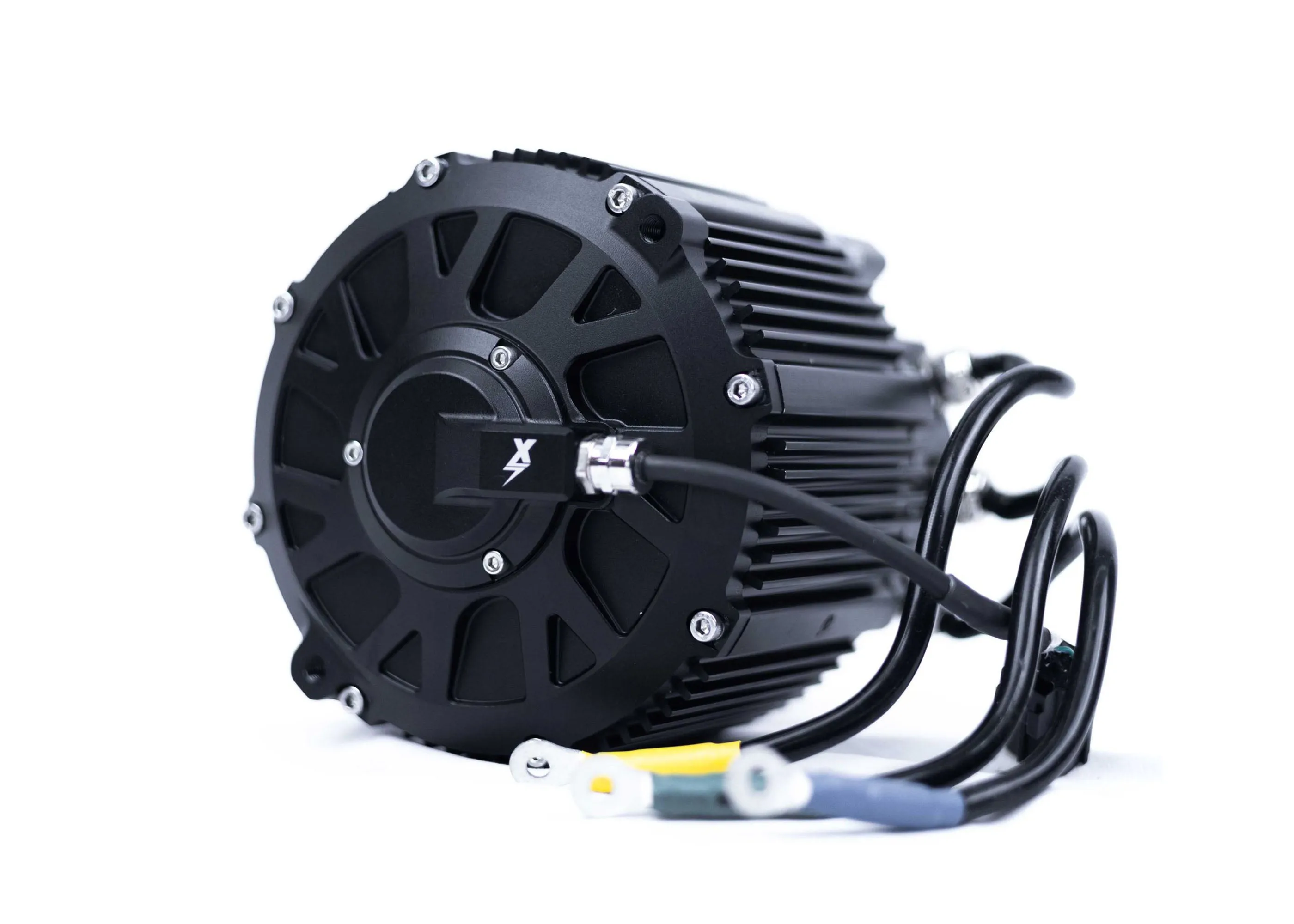

The XLB-60 RACE Motor by EBMX is designed for riders who crave unparalleled speed, power, and durability. Engineered with a massive 65mm stator and a high-performance 105kv wind, this motor delivers the torque and acceleration you need to dominate the track or trail.
Built to fit seamlessly in your SurRon Light Bee without frame modifications, the RACE edition takes everything great about the XLB-60 and elevates it for competition-level performance. Whether racing hare scrambles, tackling technical trails, or pushing the limits on drag strips, this motor will redefine your ride.
Note: Not compatible with OEM SurRon controllers. Ensure your controller supports encoder sensors, Recommended pairing is with an EBMX X9000 Found
Features
- Skidplate: Duraflex skidplate included with race motor upgrade
- Enhanced Stator Size: Upgraded from 60mm to 65mm for improved torque and power
- High-Performance Wind: 105kv for faster acceleration and top speeds
- EBMX Innovation: Focused on versatility and cutting-edge performance
- Versatility Meets Durability: Designed for high RPMs, up to 13,000, with a 1mm air gap to maximize efficiency and heat dissipation

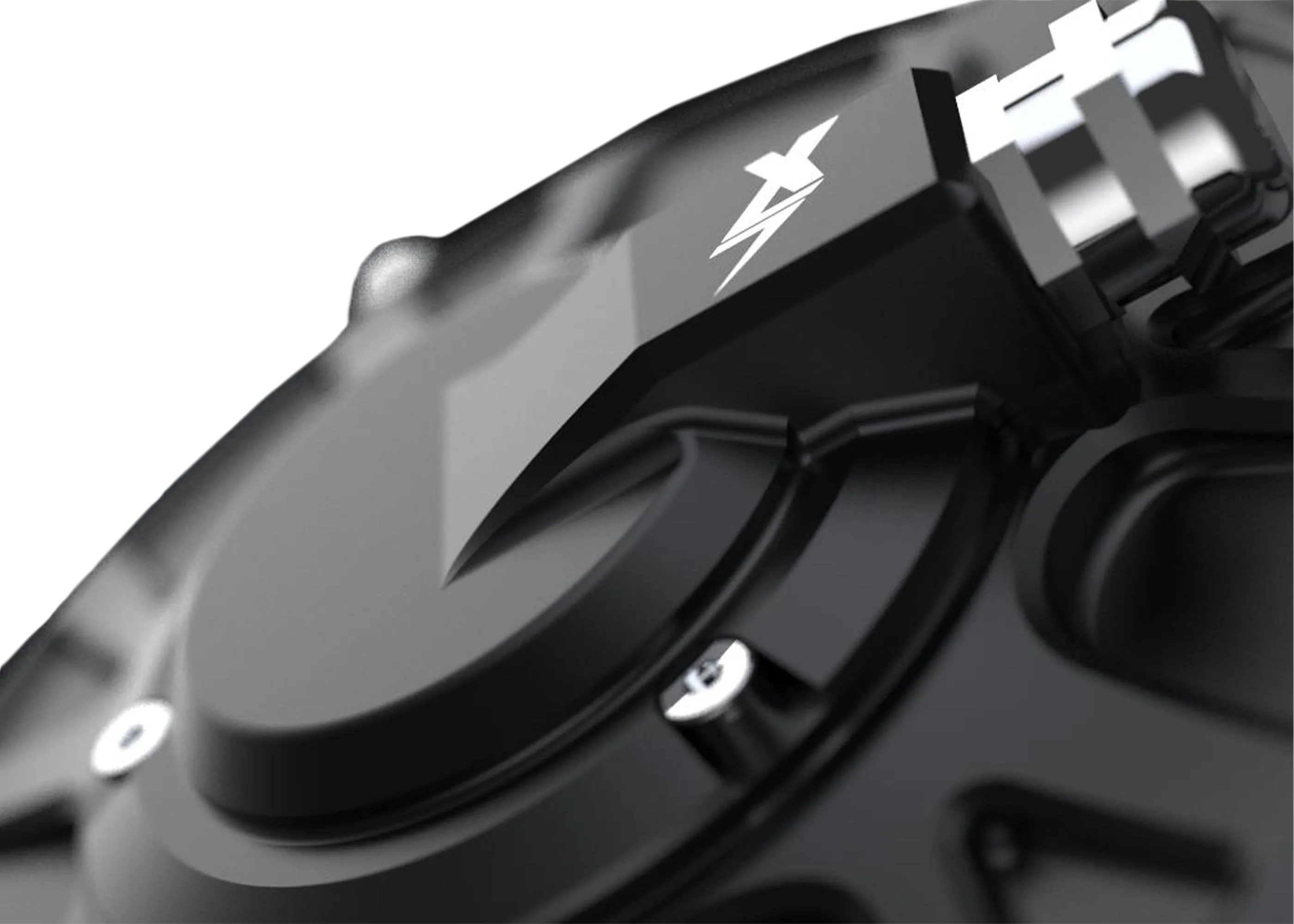

- Precision Performance: Encoder sensor technology ensures unmatched stability and accuracy for throttle response, even during aggressive riding scenarios.
Fitment
- Sur Ron LBX
Specifications
- Peak Power: 42KW @ 1200 Phase Amps / 92V
- Peak Torque: 97NM @ 1200 Phase Amps / 92V
- Stator Length: 65mm
- Magnet Length: 65mm
- Rotor Type: IPM
- Motor KV: 105
- Maximum Stable Rotor RPM: 14,000
- Motor Weight: 12.2KG
- Position Sensor Type: Encoder
- Maximum Motor Temperature: 180C
- IP Rating: IP67
- Motor Configuration: 10 Poles & 12 Slots
- Winding Type: Dual Y Parallel
- Peak Phase Current: 1400 Amps
- Continuous Phase Current: 600 Amps (35NM)
