EBMX are pleased to introduce the XLB-60RACE!!! Theyhave been quietly working on the new XLB-60 motor and are excited to let you all know it is now in manufacturing and ready for order shortly!

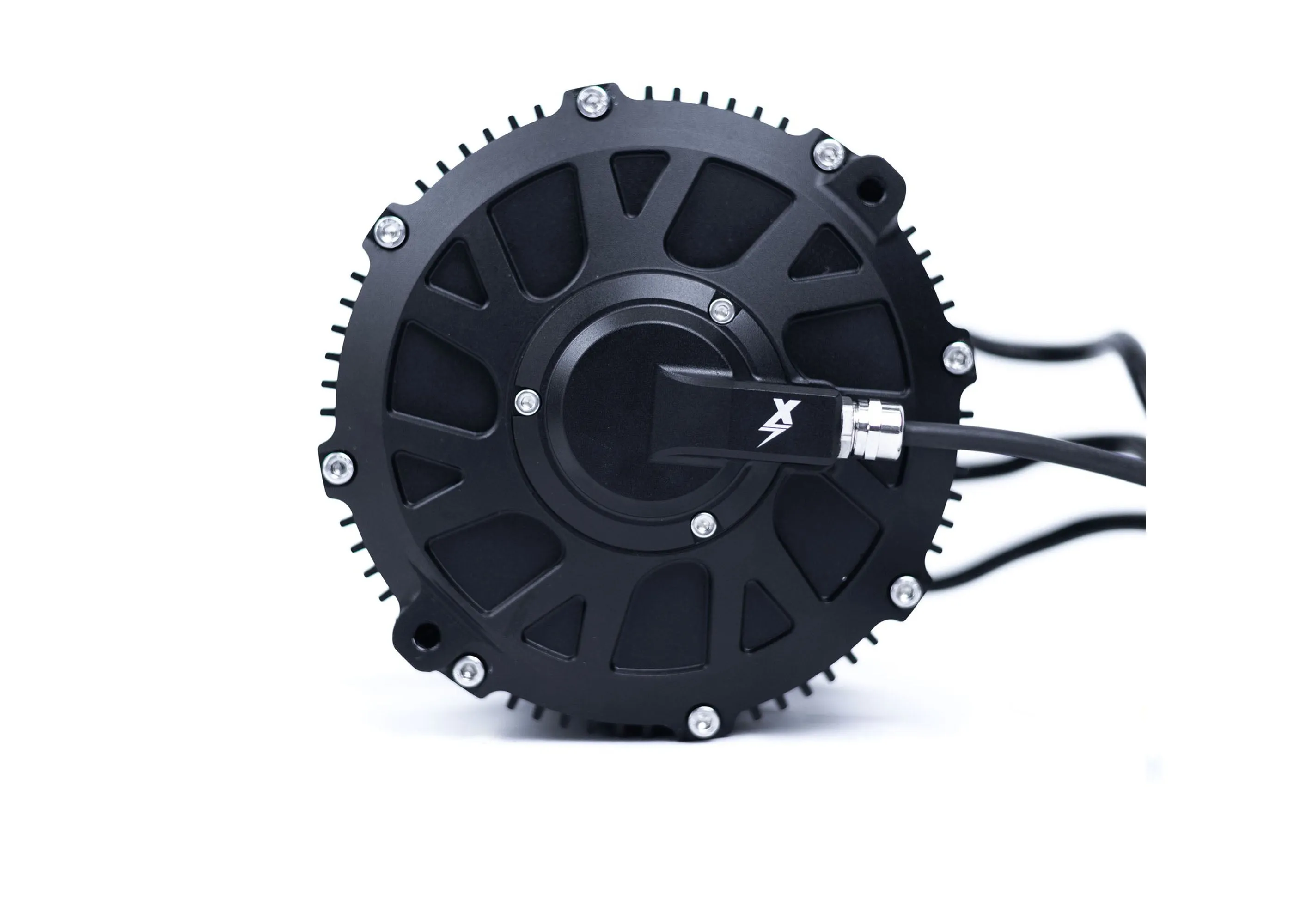

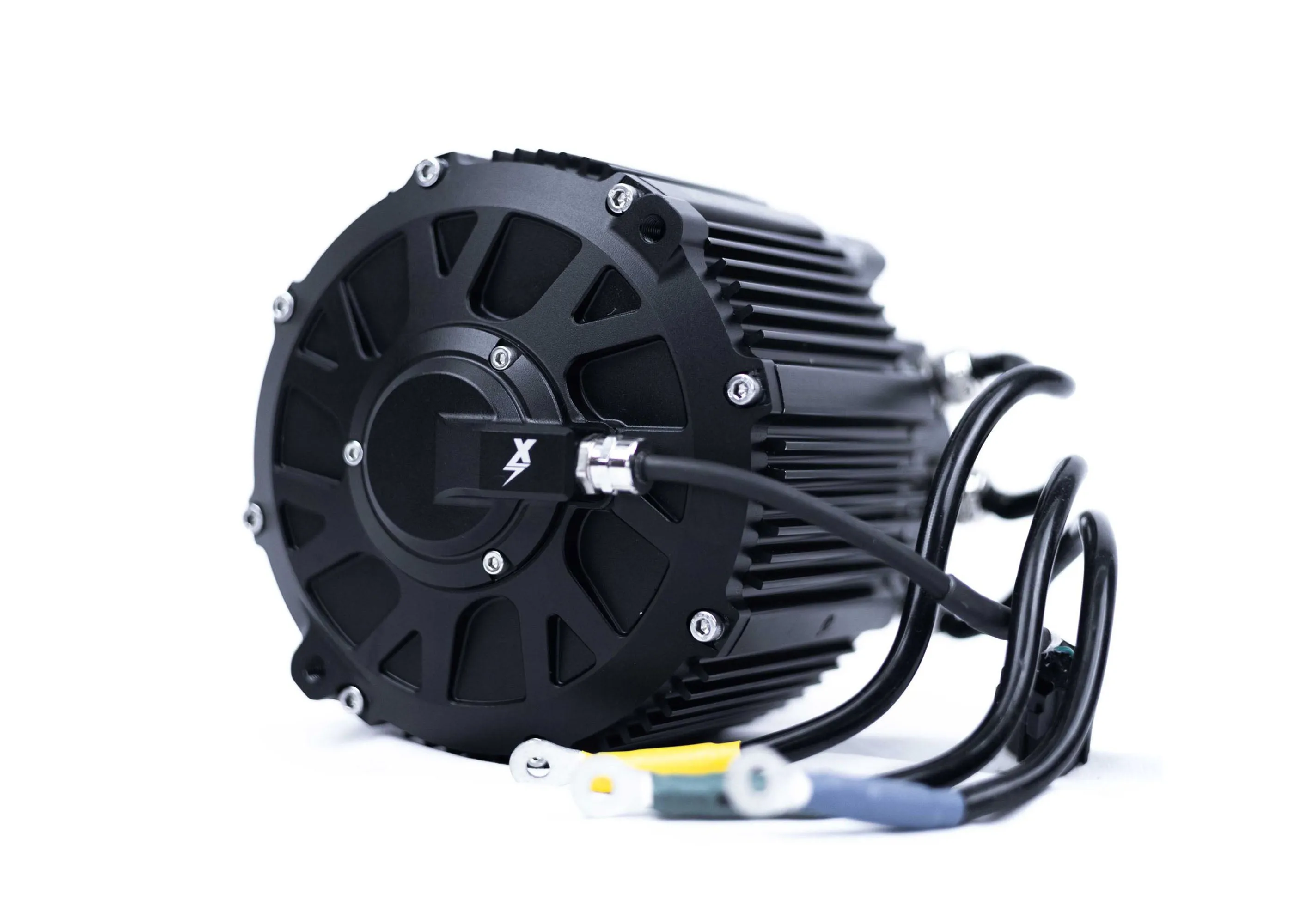

The XLB-60 RACE Motor by EBMX is designed for riders who crave unparalleled speed, power, and durability. Engineered with a massive 65mm stator and a high-performance 105kv wind, this motor delivers the torque and acceleration you need to dominate the track or trail.
Built to fit seamlessly in your E Ride without frame modifications, the RACE edition takes everything great about the XLB-60 and elevates it for competition-level performance. Whether racing hare scrambles, tackling technical trails, or pushing the limits on drag strips, this motor will redefine your ride.
Note: Not compatible with OEM E Ride controllers. Ensure your controller supports encoder sensors, Recommended pairing is with an EBMX X9000 Found
Features
- Enhanced Stator Size: Upgraded from 60mm to 65mm for improved torque and power
- High-Performance Wind: 105kv for faster acceleration and top speeds
- EBMX Innovation: Focused on versatility and cutting-edge performance
- Versatility Meets Durability: Designed for high RPMs, up to 13,000, with a 1mm air gap to maximize efficiency and heat dissipation

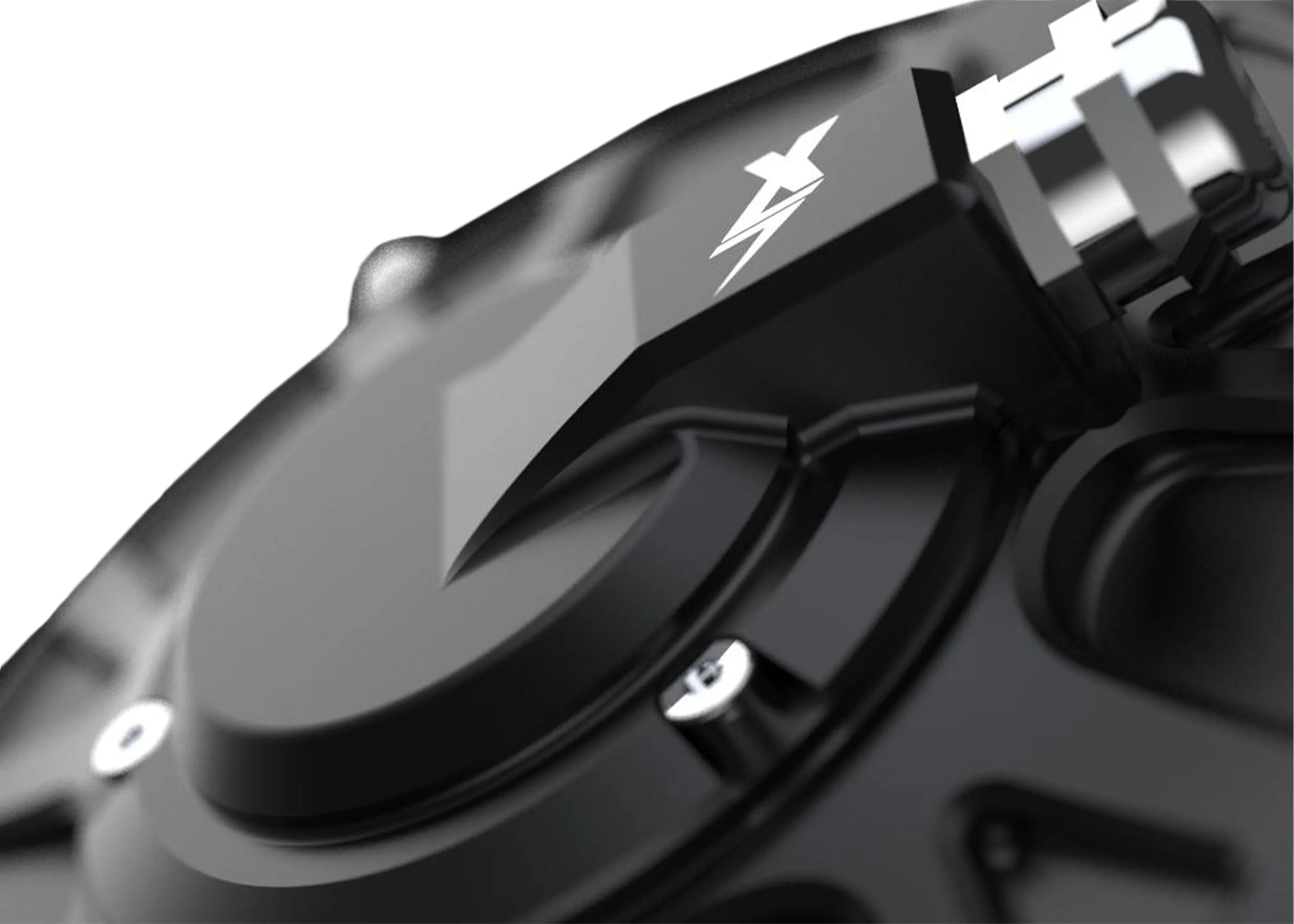

- Precision Performance: Encoder sensor technology ensures unmatched stability and accuracy for throttle response, even during aggressive riding scenarios.
Fitment
- E Ride Pro-S
- E Ride Pro-SS
Specifications
- Peak Power: 42KW @ 1200 Phase Amps / 92V
- Peak Torque: 97NM @ 1200 Phase Amps / 92V
- Stator Length: 65mm
- Magnet Length: 65mm
- Rotor Type: IPM
- Motor KV: 105
- Maximum Stable Rotor RPM: 14,000
- Motor Weight: 12.2KG
- Position Sensor Type: Encoder
- Maximum Motor Temperature: 180C
- IP Rating: IP67
- Motor Configuration: 10 Poles & 12 Slots
- Winding Type: Dual Y Parallel
- Peak Phase Current: 1400 Amps
- Continuous Phase Current: 600 Amps (35NM)
