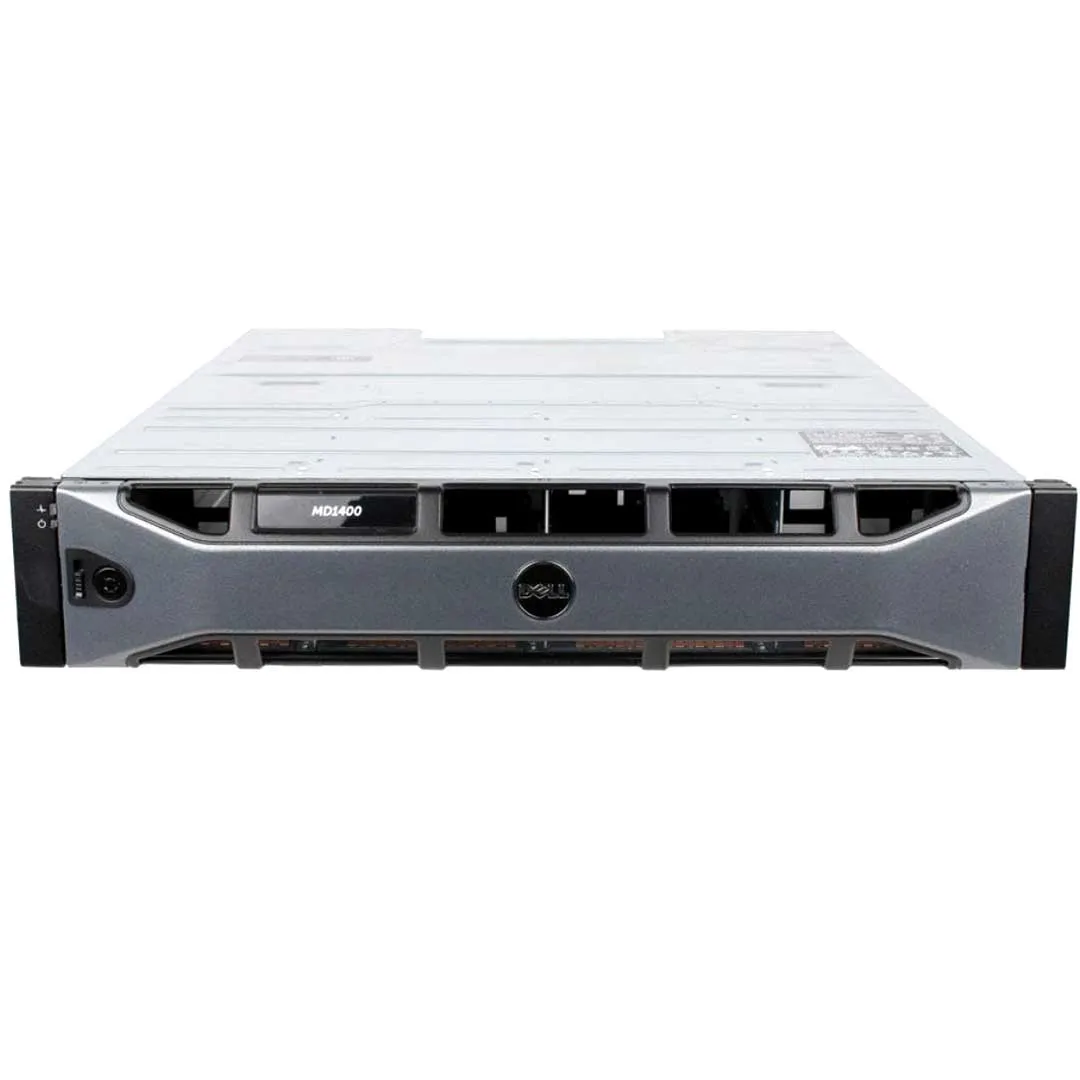

Name: Dell PowerVault MD1400 12x3.5" 12Gb SAS (DAS) CTO
SKU: 85946

Quick Specs

Form Factor:

2U rack server

Storage | Max: 168TB

12x 3.5" SAS/NL-SAS (HDD/SSD)

Controllers:

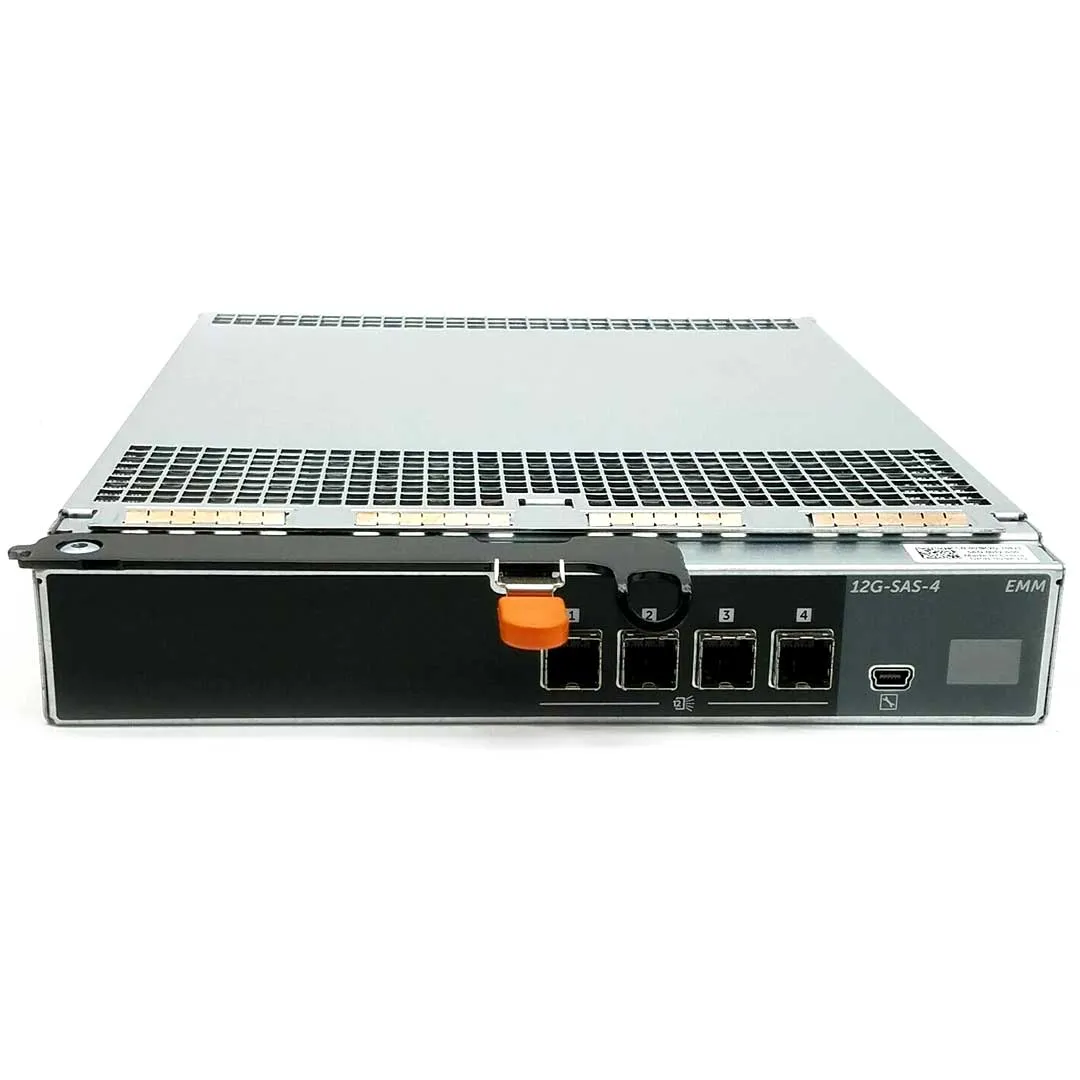

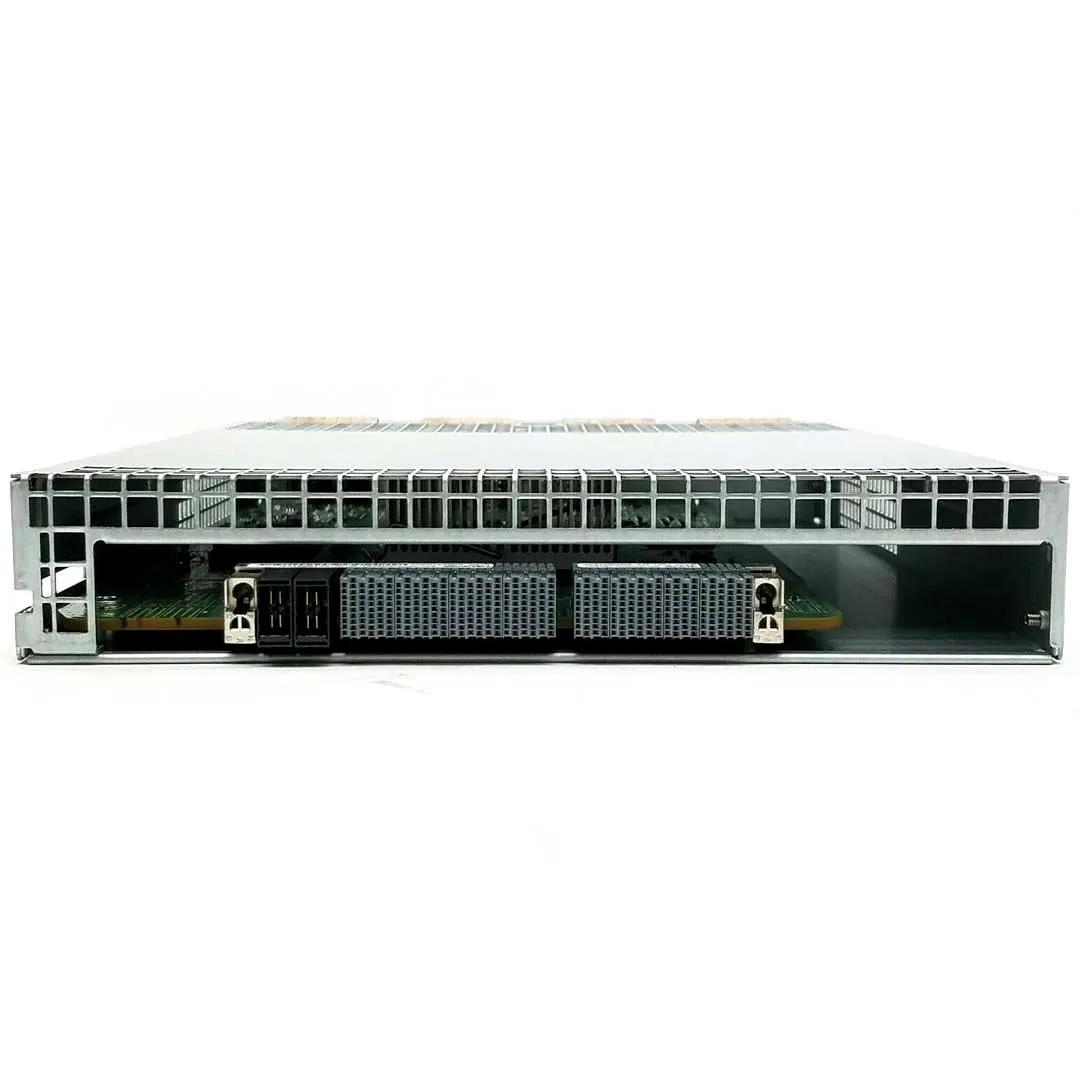

Supports up to 2 Enclosure Modules (EMM)

Ports Per Controller:

Four 12Gb/s SAS Ports

Host PERC Controller:

12Gb SAS HBA or
H830 / H840 PCIe 3.0, 2P 12Gbps SAS

RAID Levels:

0, 1, 5, 6, 10, 50, 60
Enables expansion to 8 enclosures

Other Versions:

The MD1400 offer low-cost storage expansion with double the bandwidth using 12Gbps SAS connectivity to support your growing application workloads.

Expansion Limitations:

This Support Matrix contains the latest compatibility and interoperability information. This document supersedes allother documentation information.
MD1400 and MD1420 enclosures can be used as JBODs attached to PowerEdge servers, but cannot be used asexpansion for PowerVault MD3 Series arrays.
MD1400 and MD1420 enclosures cannot be used as expansion for PowerVault ME4 series or PowerVault ME5 seriesarrays

The MD1400 offers:

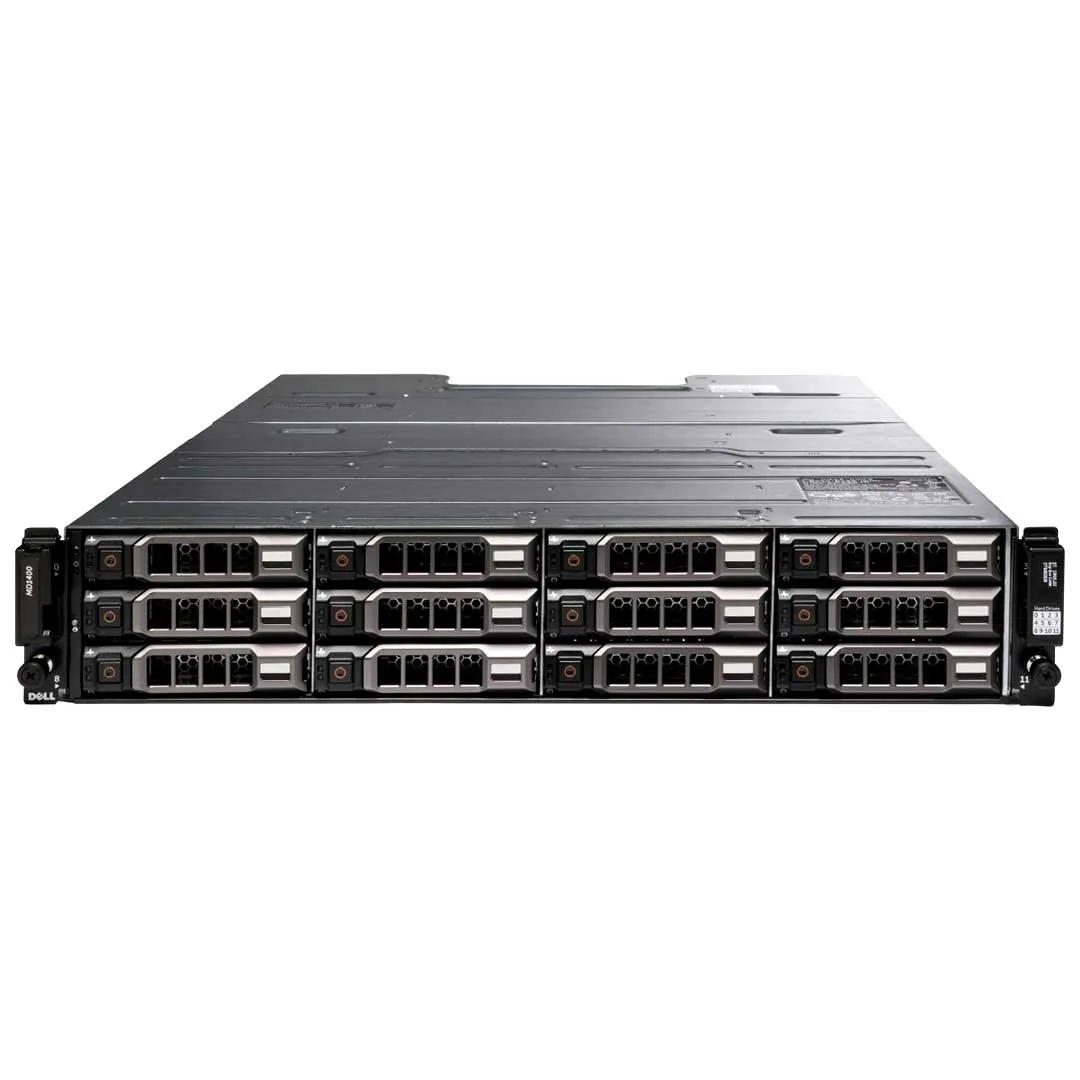

Up to 12 hot-pluggable 3.5” or 2.5” drives (2.5” available with adapter)

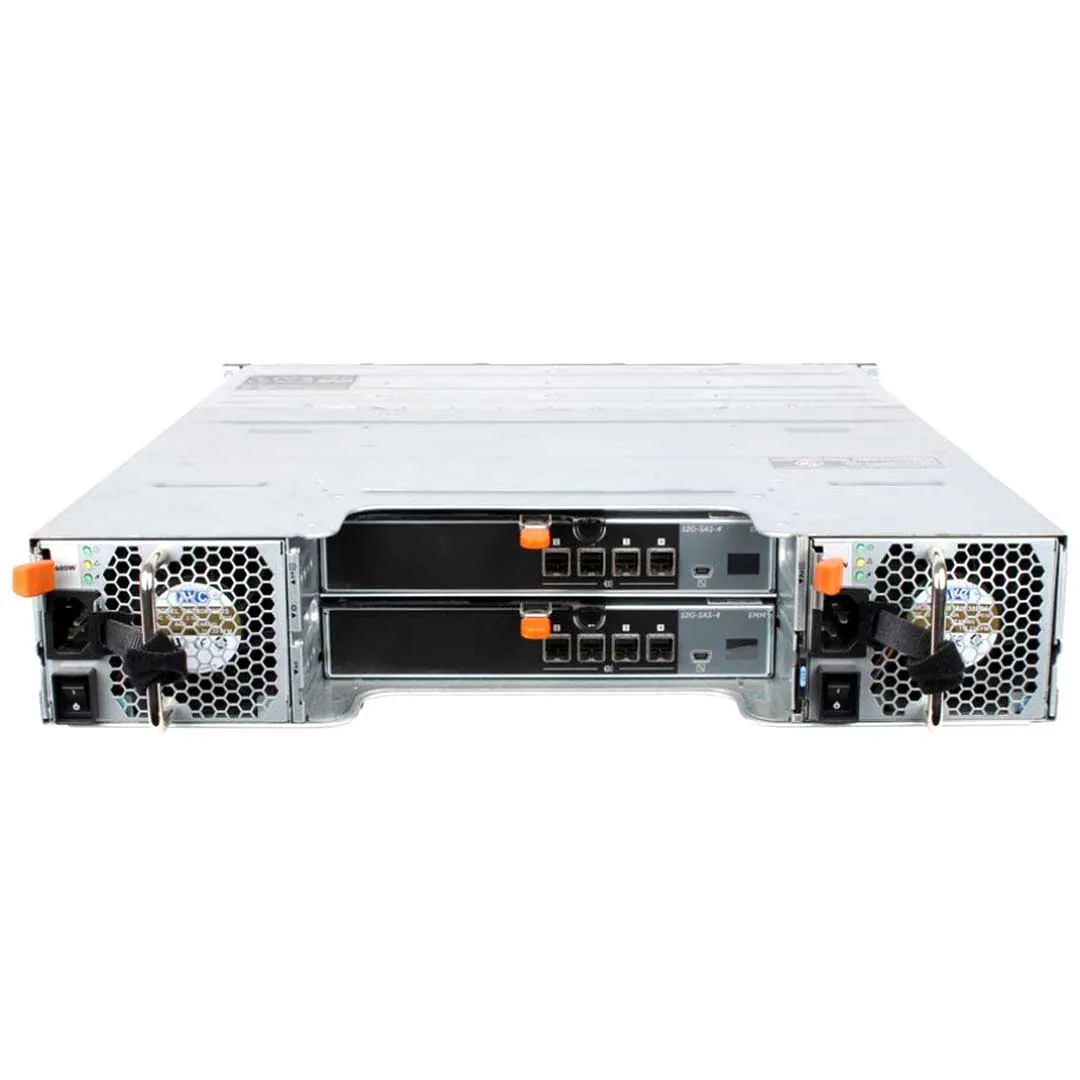

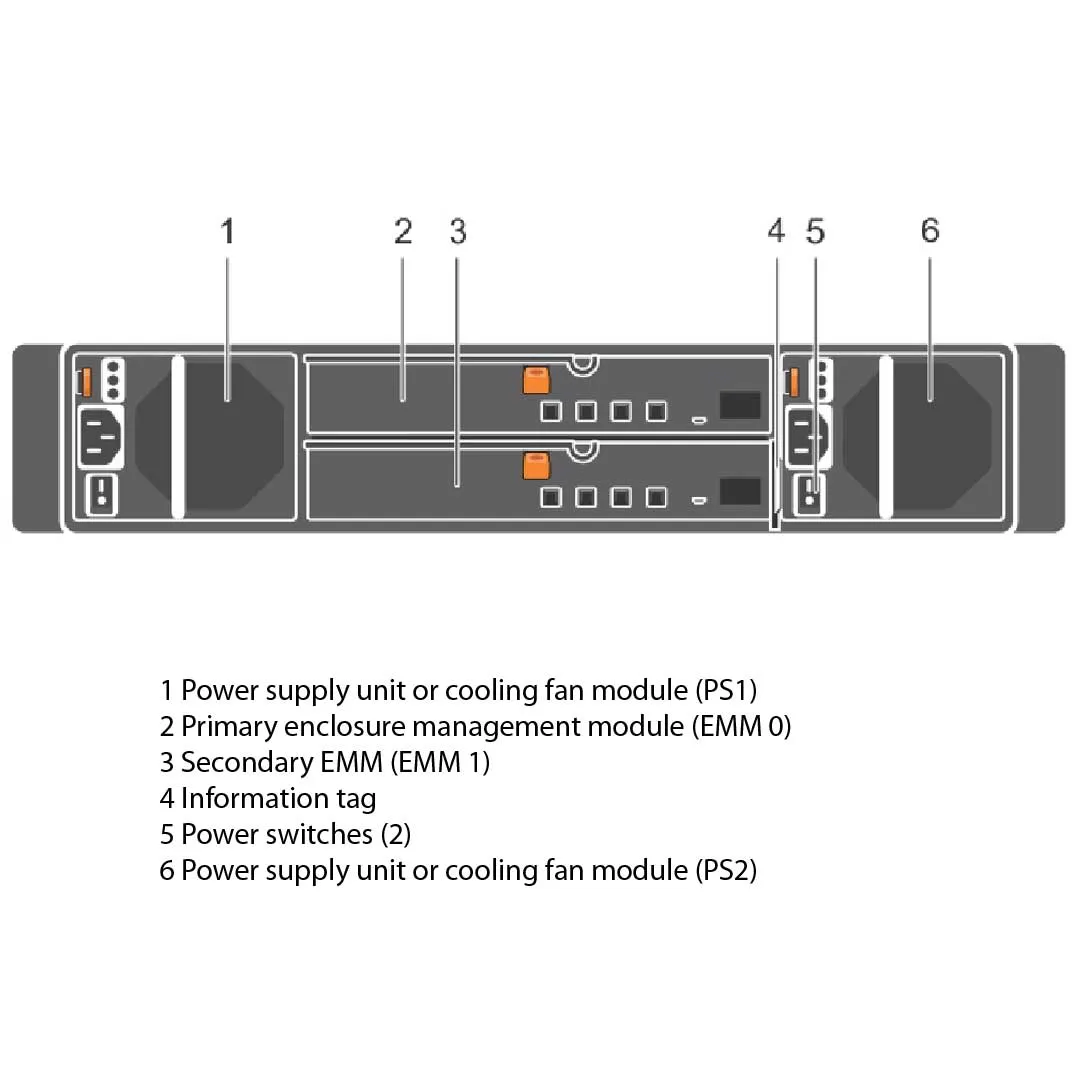

Hold two 600W PSU's
Has two Modes, Unified Single Path and Redundant Path

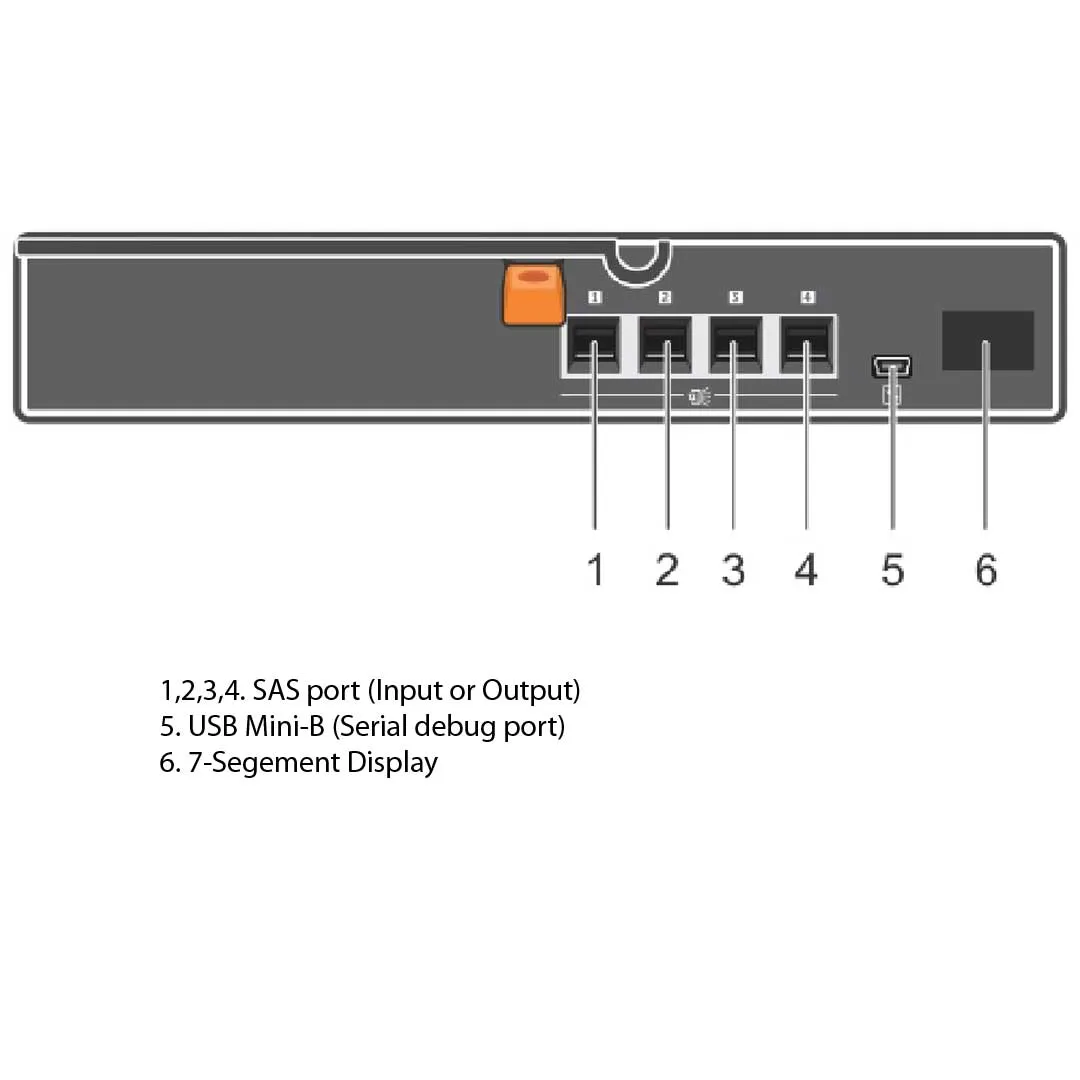

4 mini-SAS HD connector for connection to the host or expansion

RAID Controllers:

The intelligence of the Dell PowerEdge RAID Controller (PERC) H830 or H840 HostRAID adapter, which enables the software to recognize all of your storage as a single unit, helps increase reliability and fault tolerance. You can place up to eight MD enclosures behind a PowerEdge server using a 12Gb SAS HBA or the PERC9 series with a 12Gb RAID controller.

Designed for capacity and performance

The MD Series offers the versatility needed to meet both your storage capacity and performance requirements. The MD1400 and MD1420 models are specifically designed to work with the latest PowerEdge servers using the PERC H830 or H840 RAID controllers with 12Gbps SAS offering unmatched I/O performance for database applications, streaming digital media environments, and storage-intensive applications.

Seamless integration and management

Leveraging the technology and design of PowerEdge servers, the MD1400 and the MD1420 use the same hot-swappable drives, fans, and power supplies to minimize the cost of spares. If drive security is a priority, the option to use self-encrypted drives (SED) with drive-level encryption ensures your data is secure, even if the drive is removed. Additionally, SEDs support instant Secure Erase of drives which permanently removes data when repurposing or decommissioning drives.

When combined with Dell’s storage-optimized PowerEdge servers and the new MD Series of expansion enclosures, you have an affordable direct-attached storage option in Microsoft environments.
