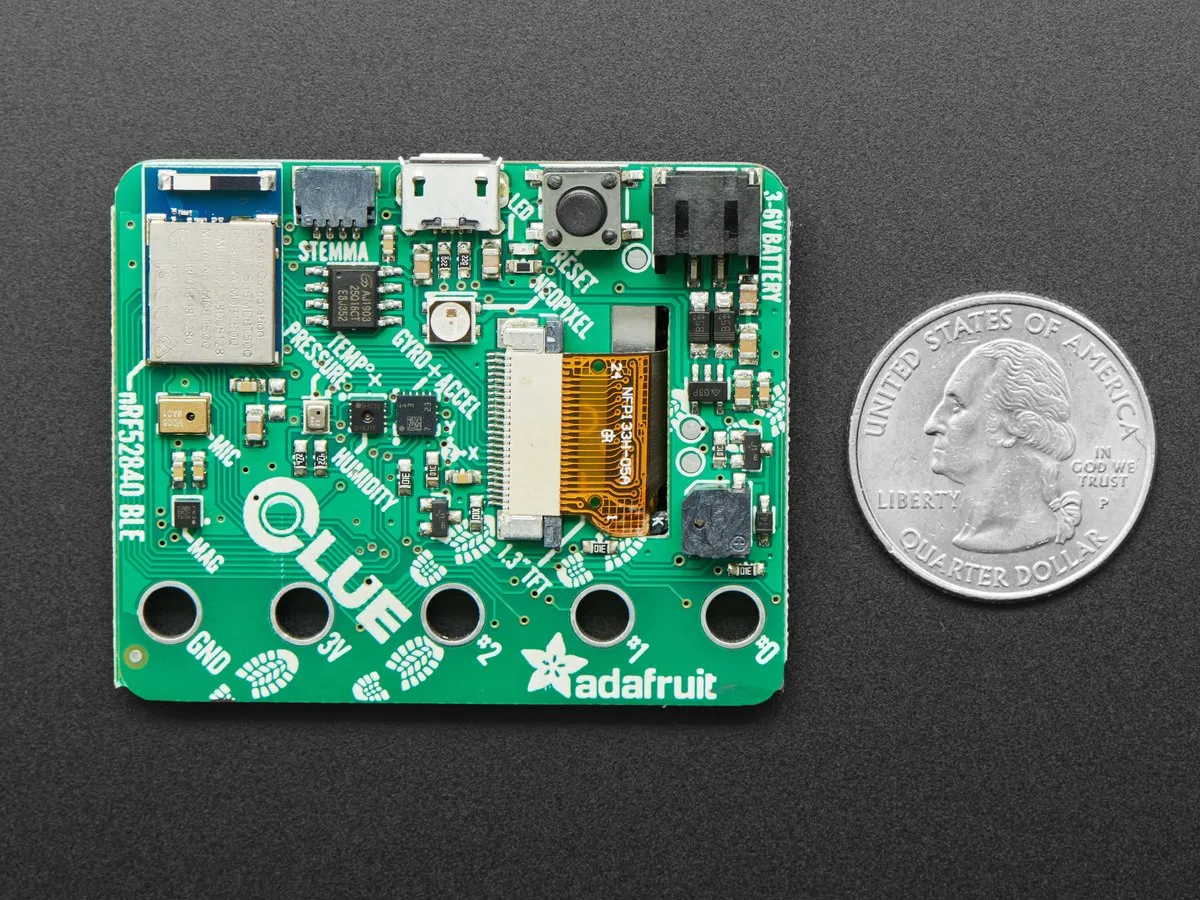

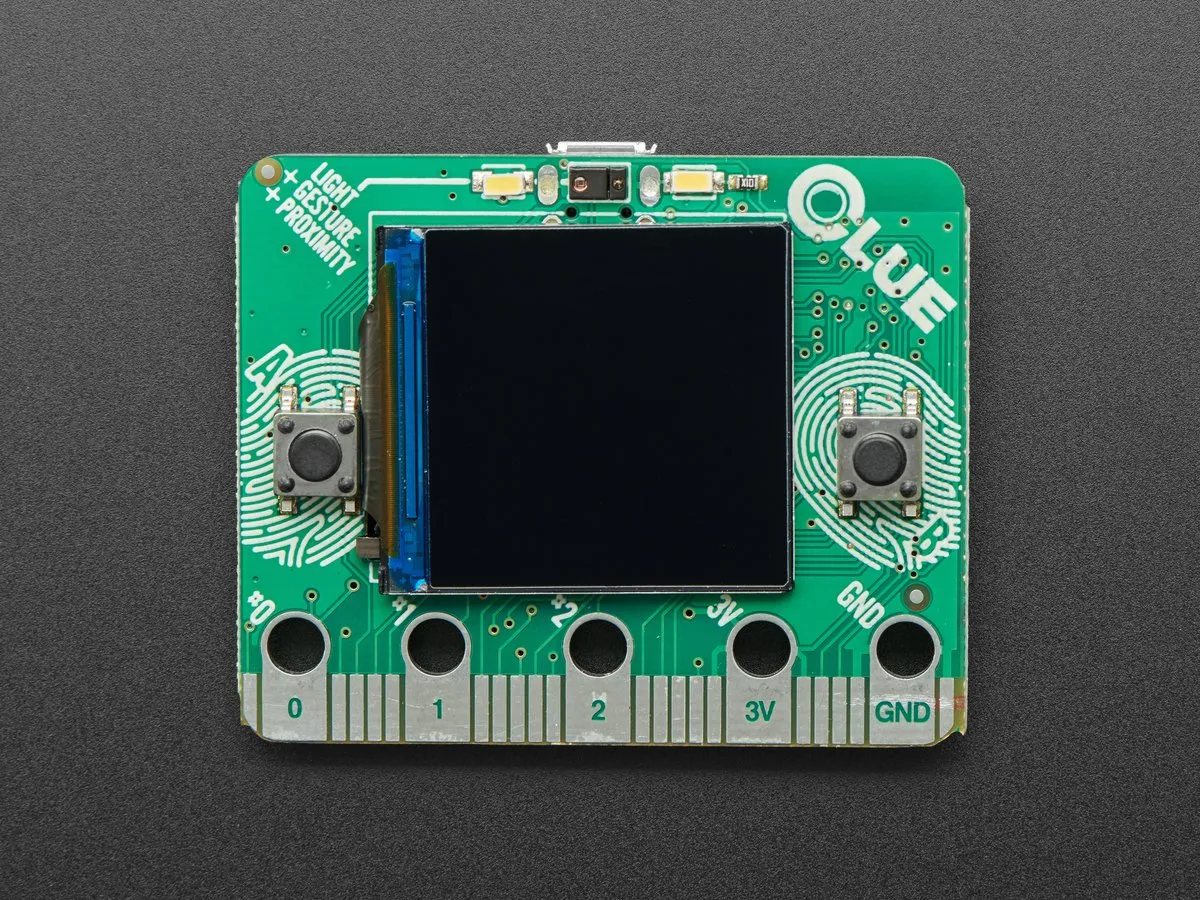

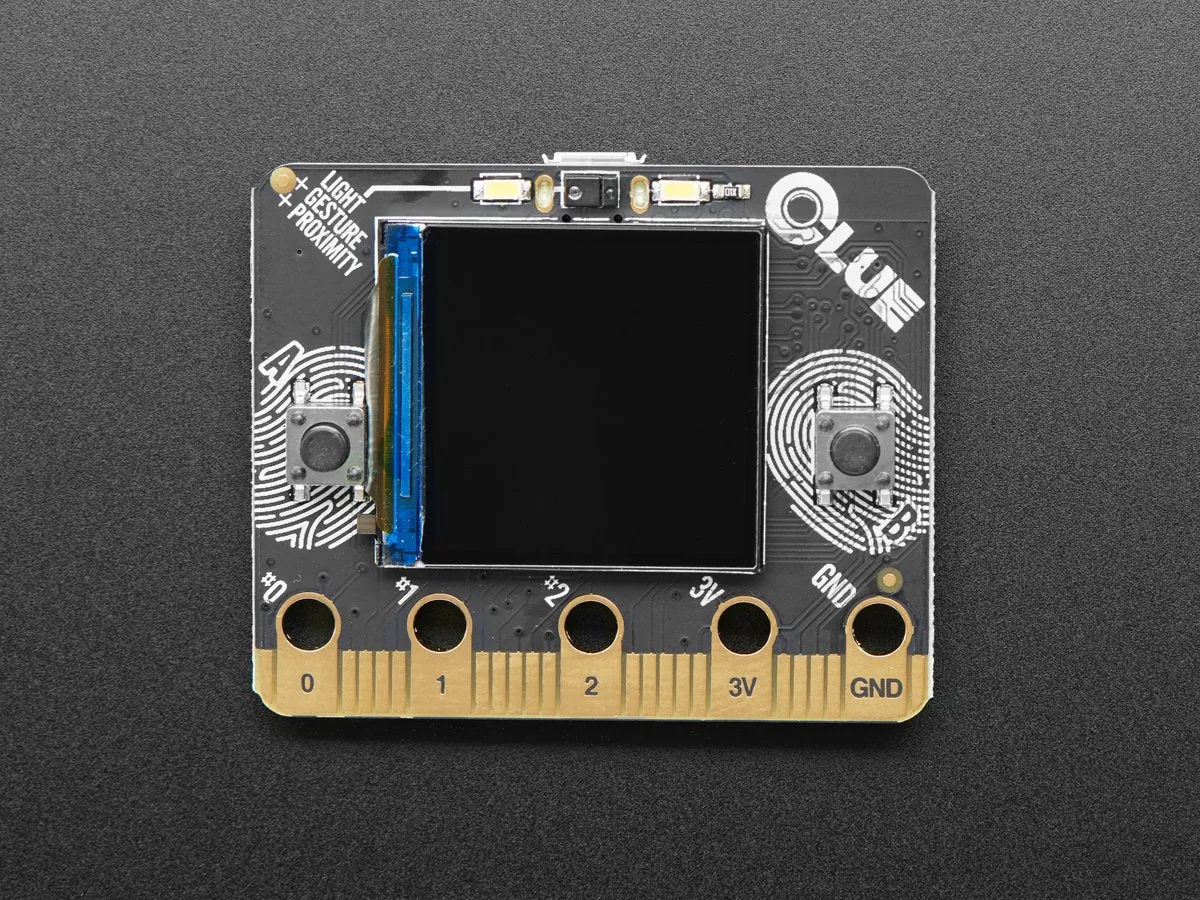

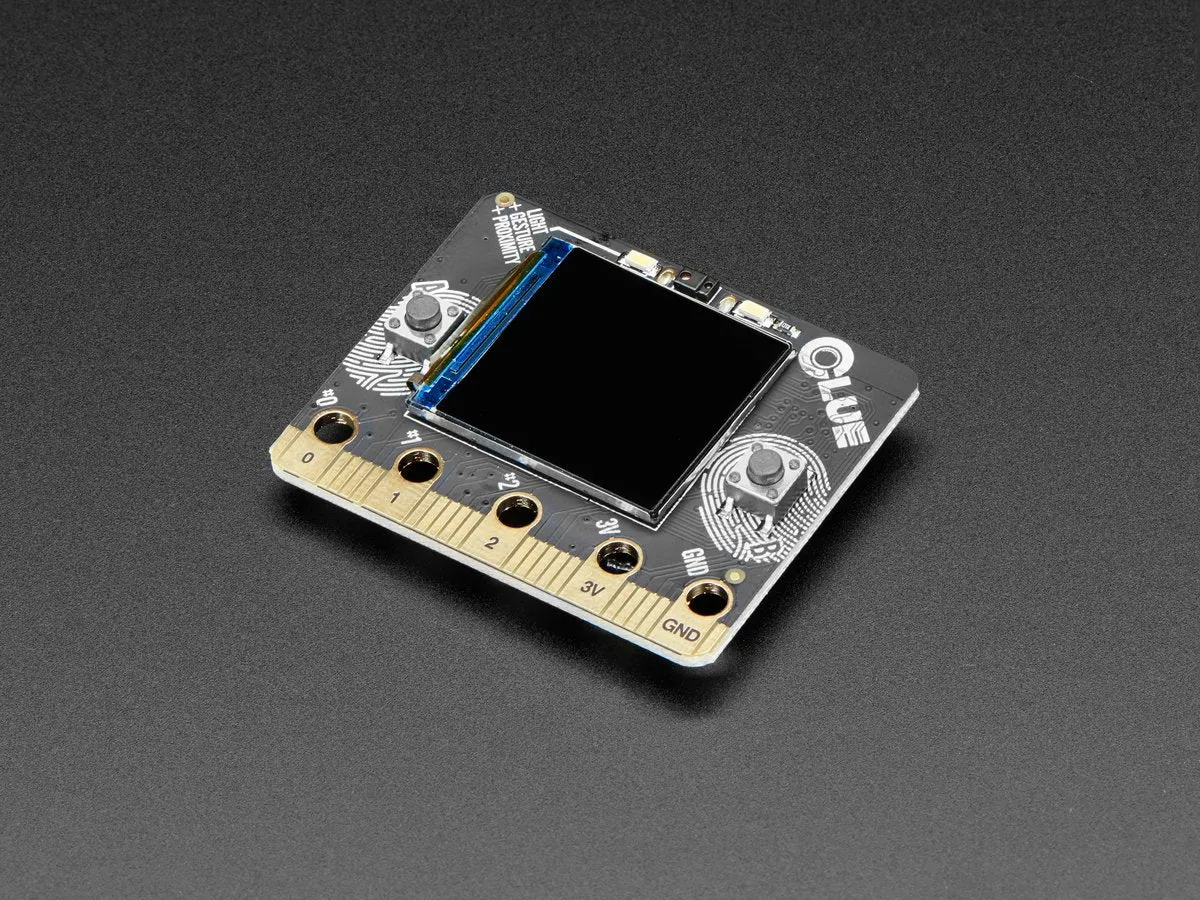

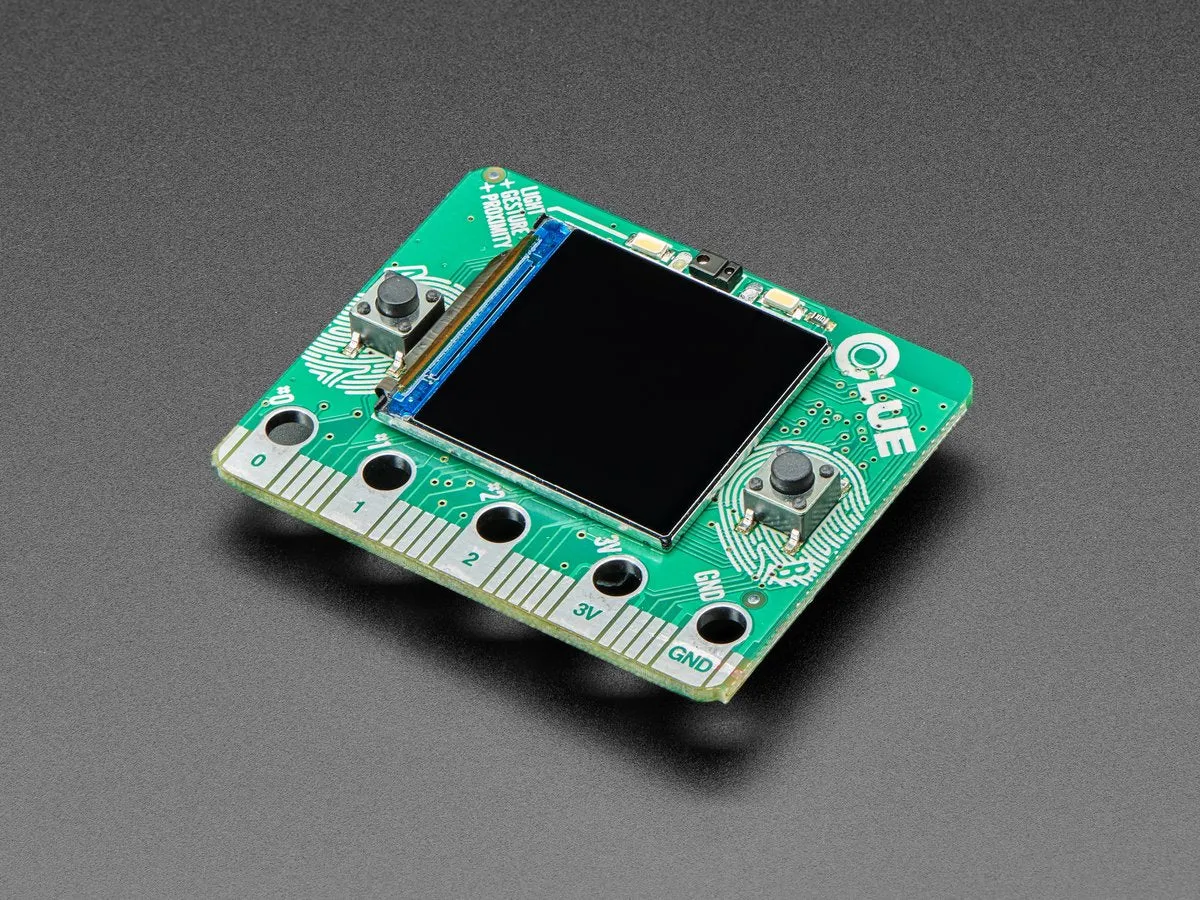

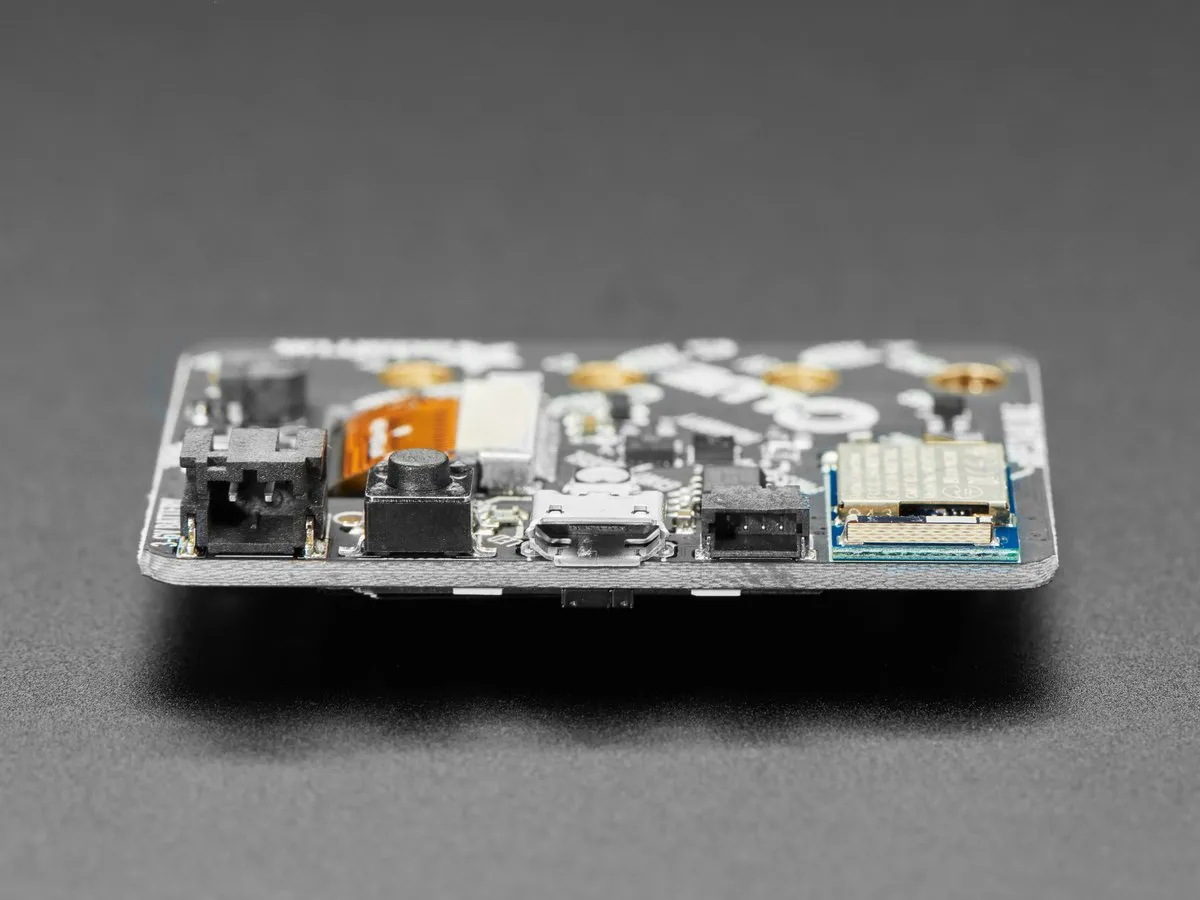

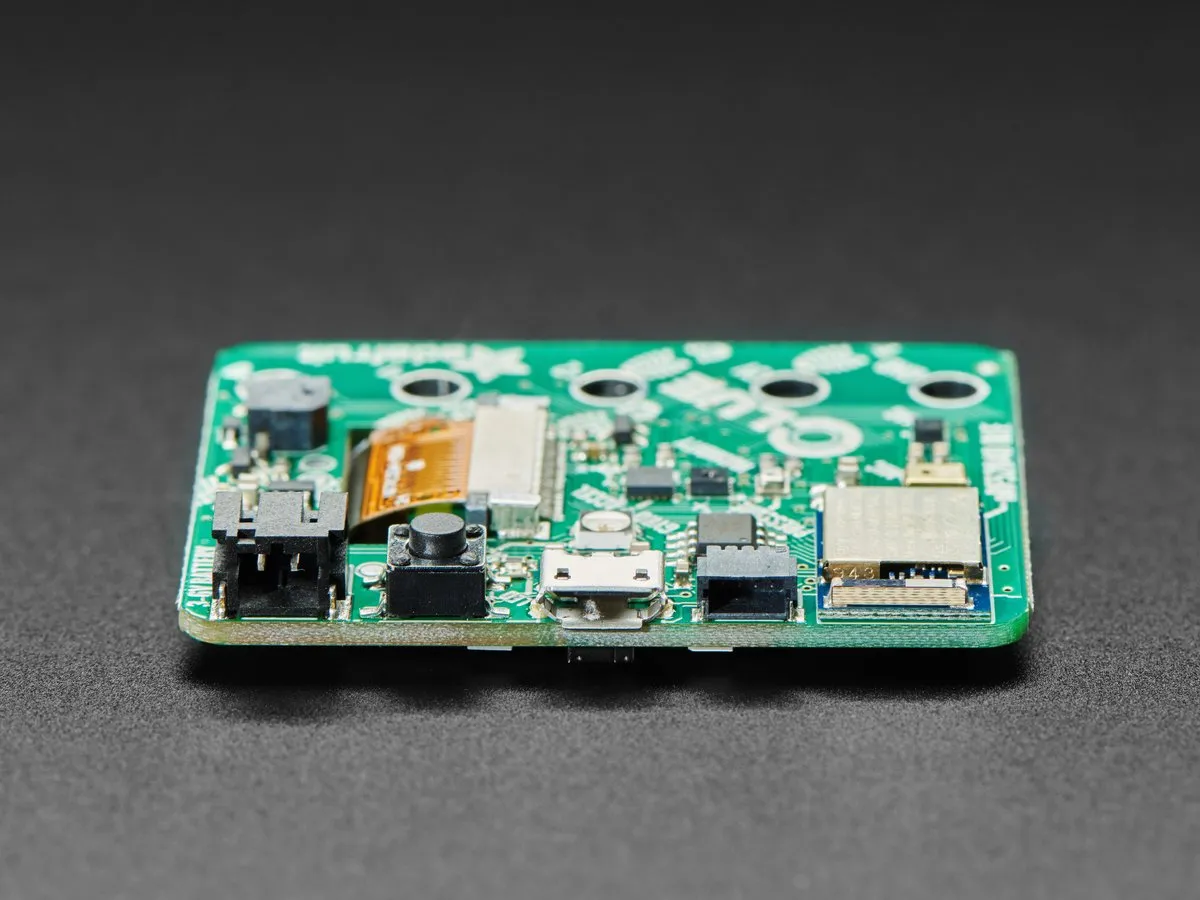

Do you feel like you just don't have a CLUE? Well, we can help with that - get an Adafruit CLUE by picking up this sensor-packed development board! It's great for building projects that need a small screen and a lot of sensors. To make it compatible with existing projects, Adadruit made it the same shape and size as the BBC micro:bit, and with the same edge-connector on the bottom with 5 big pads so it will fit into your existing robot kit or 'bit add-on.

While the CLUE looks a bit like a micro:bit it has totally redesigned-from-scratch technology:

• Nordic nRF52840 Bluetooth LE processor - 1 MB of Flash, 256KB RAM, 64 MHz Cortex M4 processor
• 1.3″ 240×240 Color IPS TFT display for high resolution text and graphics
• Power it from any 3-6V battery source (internal regulator and protection diodes)
• Two A / B user buttons and one reset button
• Tons of sensors!
  • ST Micro series 9-DoF motion -
• RGB NeoPixel indicator LED
• 2 MB internal flash storage for datalogging, images, fonts or CircuitPython code
• Buzzer/speaker for playing tones and beeps
• Two bright white LEDs in front for illumination / color sensing.
• Qwiic / STEMMA QT connector for adding more sensors, motor controllers, or displays over I2C. .
• Programmable with Arduino IDE or CircuitPython

Please note that at this time there is no MakeCode or Scratch support for the nRF52840 chipset (of course, we’d love to see MakeCode but there is no ETA when it may be added). While the CLUE is the same outline, and Adafruit did their best to make the edge-connector pins match up, most cases for the micro:bit wont fit the CLUE, and code may not be immediately compatible without adjustment, especially since only Arduino and CircuitPython are supported at this time.

The CLUE is designed for projects that use a ton of sensors - and they're all built in! So you can start exploring your world, measuring, logging and learning. You can transmit data over Bluetooth to a computer or mobile device for data plotting and logging, or save it to the built in storage.

Technical Details
